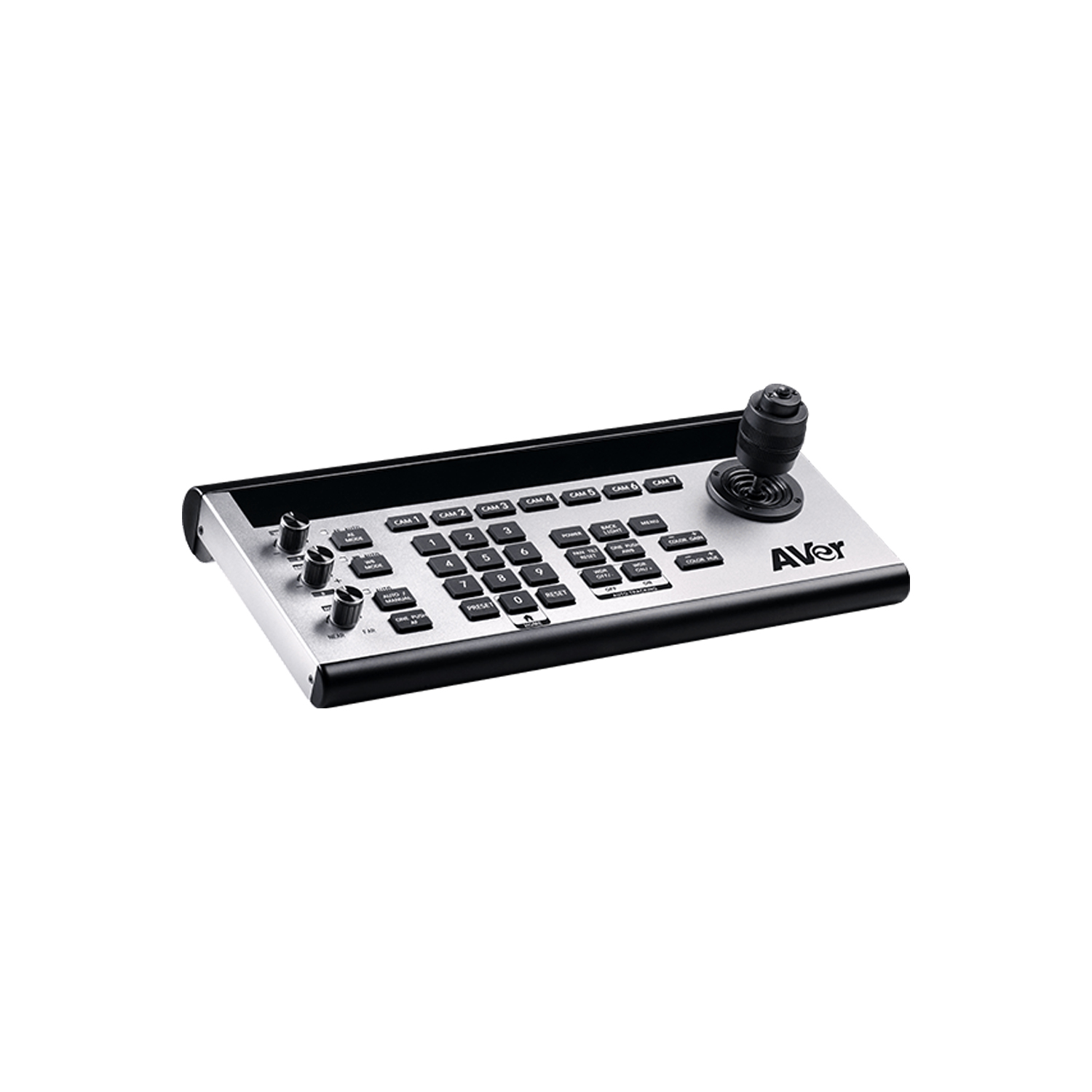

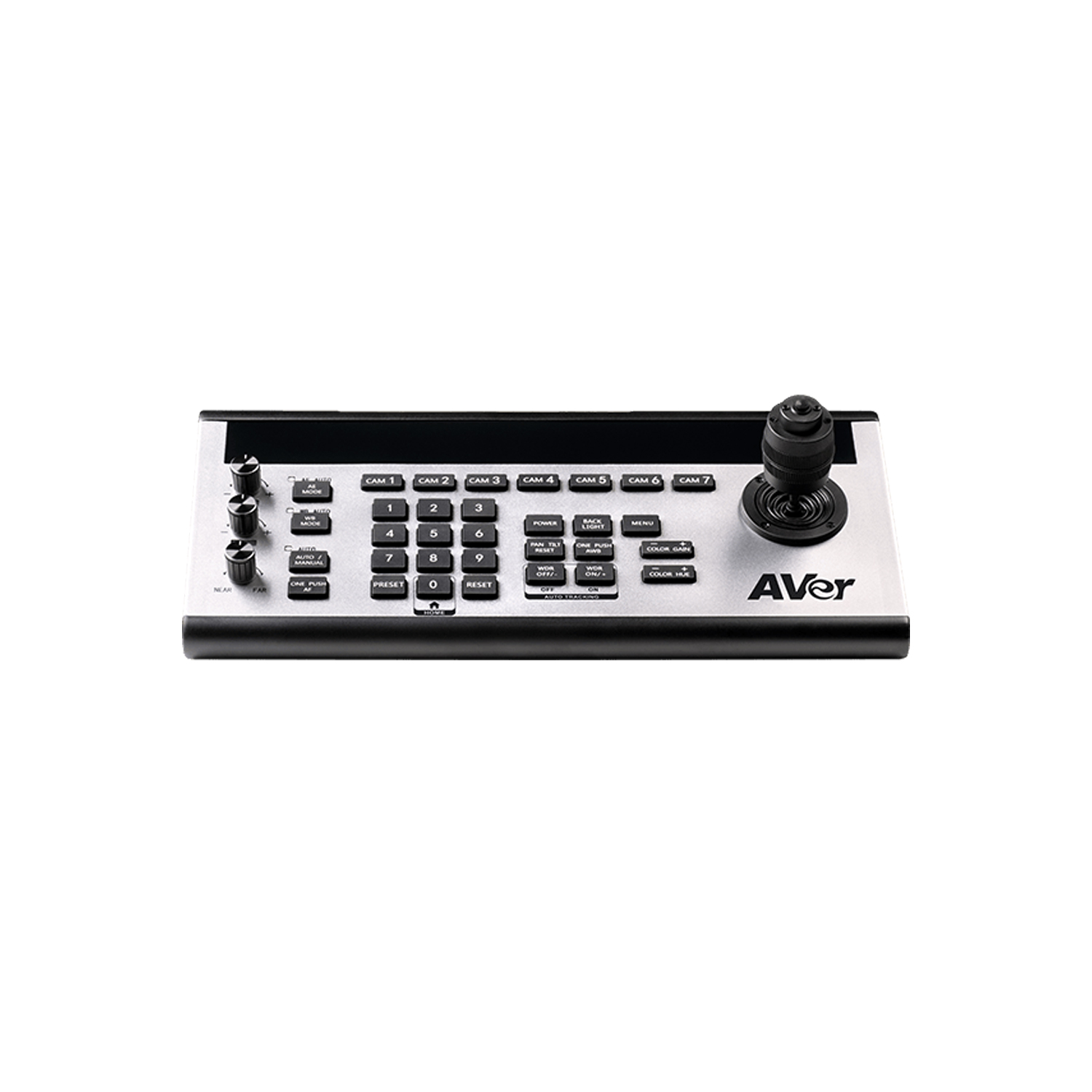

AVer CL01 Professional PTZ Camera Controller with Joystick dan Layar OLED

Rp28.027.500

Pesan Disini
Add to wishlist
SKU: CL01 Category: Tags: , , , , , ,

Description

CL01
PTZ Camera Controller

The ideal solution for education, conferencing, telemedicine, livestreaming & broadcasting!

PTZ Camera Controller

The AVer CL01 is a professional PTZ camera controller with a robust communication interface, built-in VISCA and Pelco-D/P protocols. It supports RS-422 / RS-485 / RS-232 / IP control for compatibility with most PTZ cameras. Simple configuration makes it easy to operate the 7 camera shortcut channels, 3 infinite rotation knobs, and more.

Hardware Appearance

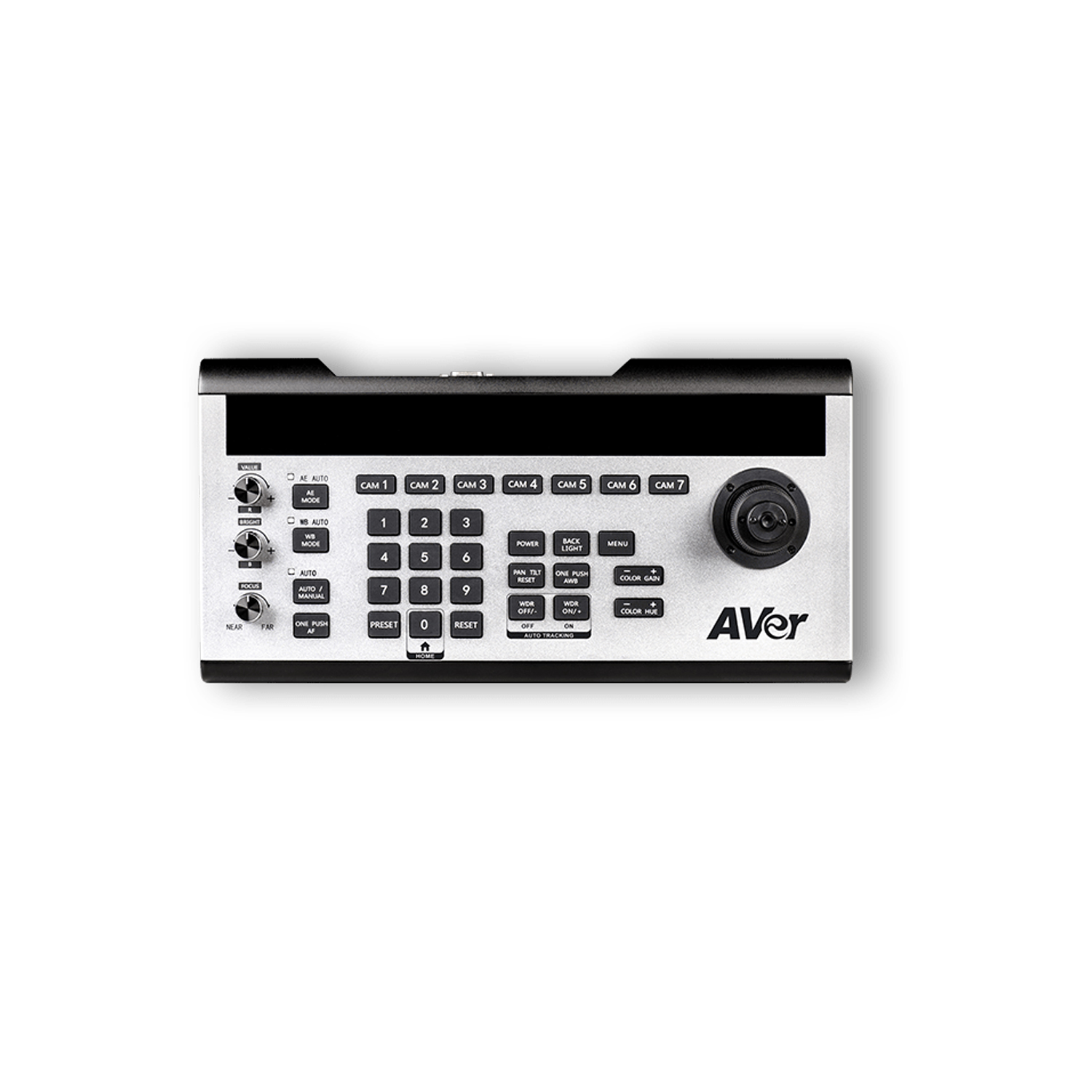

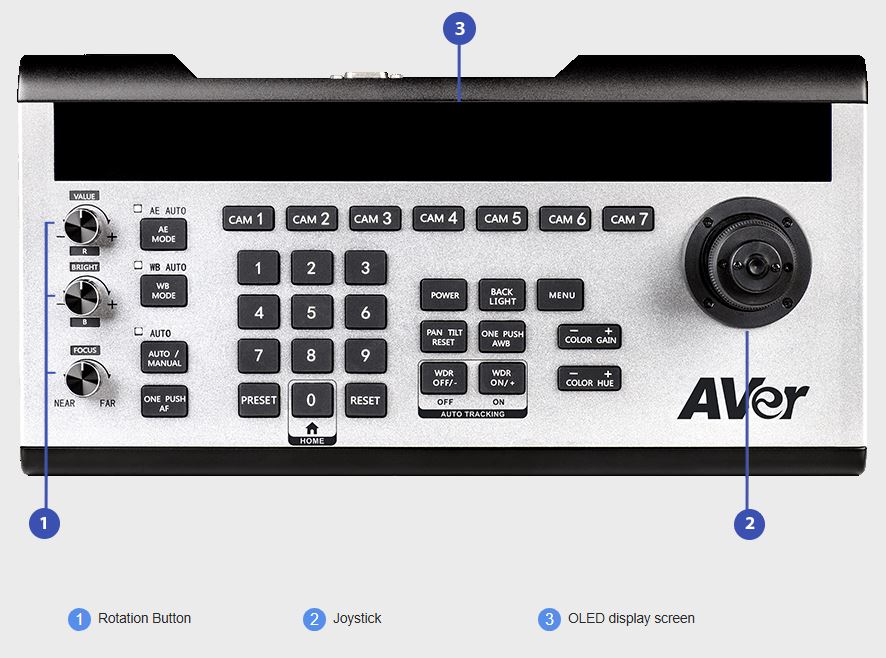

Front Panel

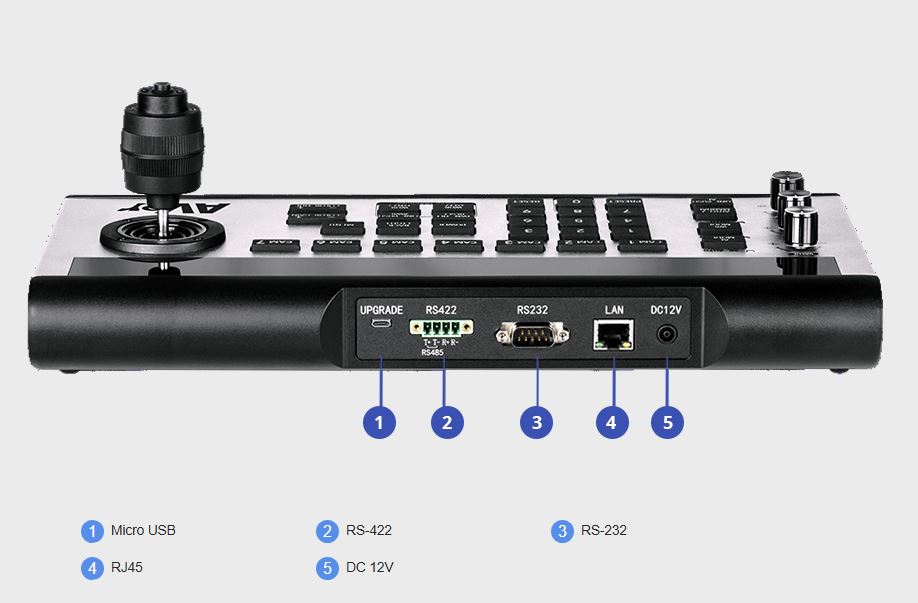

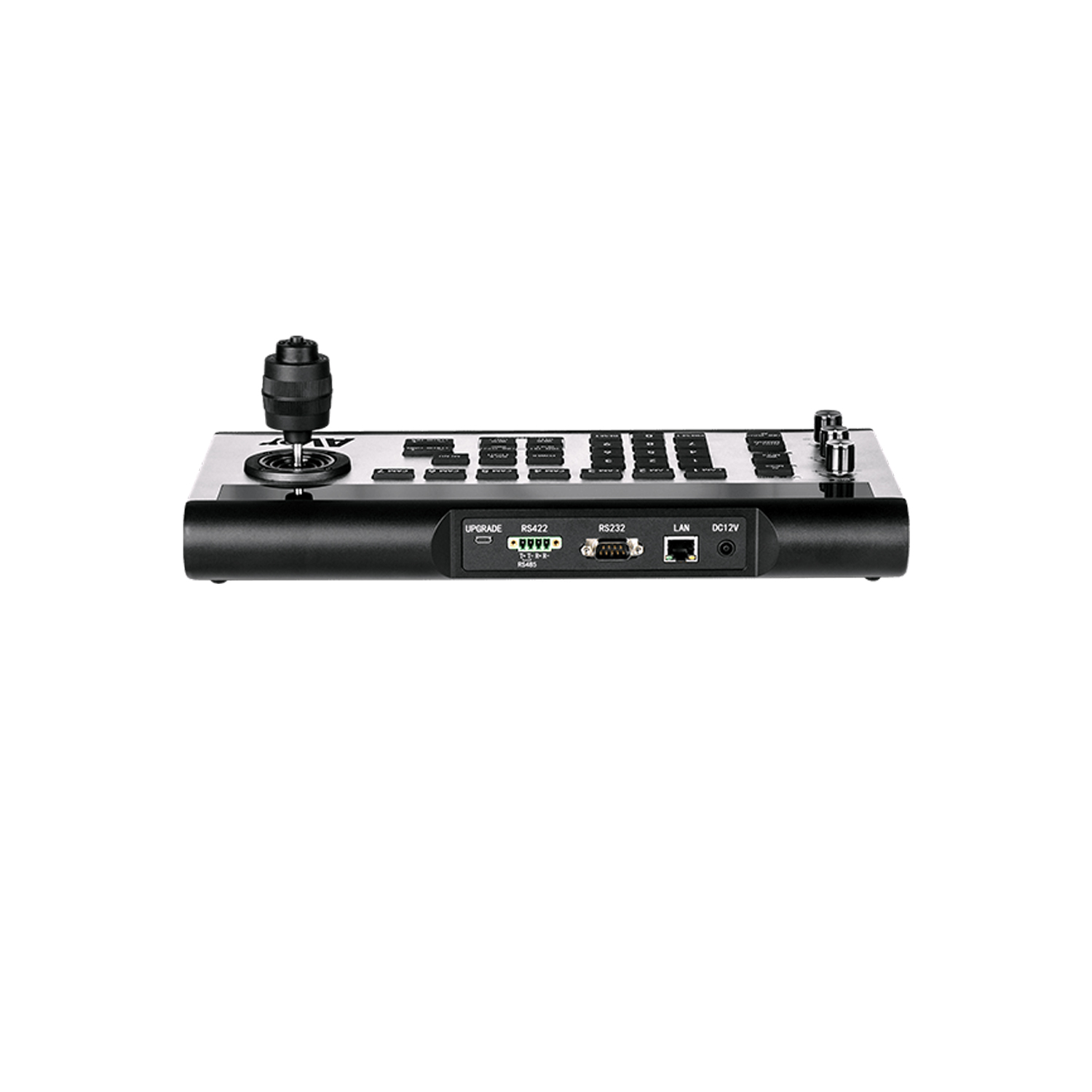

Back Panel

Brand

AVER

Specification

O/I Interface

 Communication : RS-485, RS-422, RS-232, IP, Micro USB for firmware upgrades
Baud Rate : 2400, 4800, 9600, 19200, 38400 bps

User Interface

 Display : OLED display screen
Camera Shortcut Shannel : 7
Rotation Button : 3
Joystick : 1

Camera Control

 IP Address : Default: 192.168.1.162 /163 /164 /165 /166 /167 /168(from Cam 1 to Cam 7)
UDP Port : 08090
Cam ID : 1 to 7 and mode (255* max.)
Control Protocol : VISCA, SONY VISCA, Pelco D/P, UDP, IP (VISCA over IP)

System

 Operating Temperature : 0°C ~ 40°C (32°F ~ 104°F)
Dimensions : 173 mm (W) x 99 mm (H) x 350 mm (D)
Net Weight : 2.5 kg
Power Source : – DC 12V/2A, – AC 100 – 240V
Power Consumption : 24 W
Application : Indoor
Warranty : 3 years
Package Content : – User manual, – 4-pin RS485 terminal, – Power Adapter

Download

AVer CL01 Datasheet
