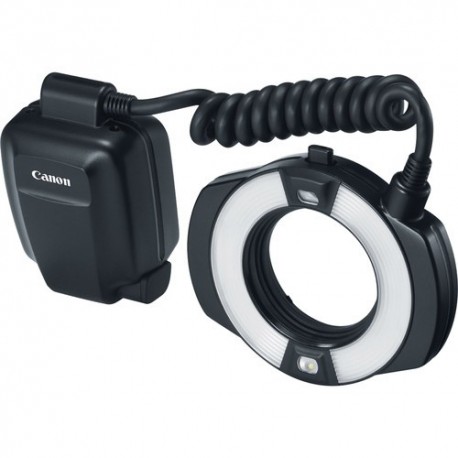

Canon Macro Ring Lite MR-14EX II

Description

Product Highlights

Compatible with Canon E-TTL / E-TTL II
Twin-Tube Design & 12 Custom Functions
Guide Number: 45.9′ at ISO 100
Coverage: 80° Vertical & Horizontal
LED Focusing Lamps
Wireless Master TTL Functionality
Recycle Time: 0.1-5.5 Seconds
High-Speed & 2nd Curtain Sync
Runs on 4 AA Batteries
Attaches to Select Canon Macro Lenses

Overview

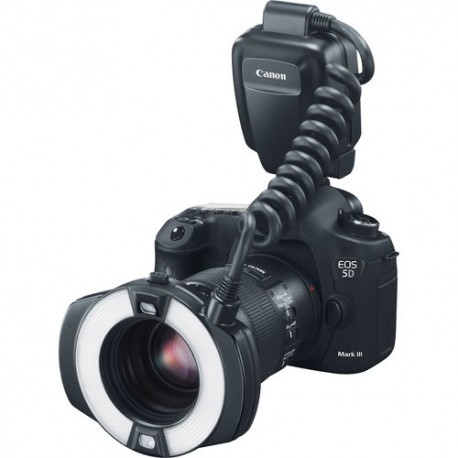

The all-new Macro Ring Lite MR-14EX II is ideal for EOS quality close-up photography when used in conjunction with one of Canon’s EF Macro lenses. Redesigned as a perfect complement to contemporary digital SLR setups, it is the most advanced macro flash Canon has ever produced. It has a maximum Guide No. of 34.4 ft./10.5m at ISO 100 and a twin-tube design where both flash tubes can be directed to fire independently or together. Sophisticated white LED focusing lamps and two forms of modeling lights make for easy and accurate previewing of lighting effects. Infinitely adjustable in any lighting condition with its illuminated dot-matrix LCD, the Macro Ring Lite MR-14EX II has 12 custom functions and supports E-TTL wireless autoflash when linked with one or more Speedlite 600EX-RT flashes. All this in a refined, compact design with shorter recycling times than its predecessor makes the Macro Ring Lite MR-14EX II a reliable, customizable choice.

Specifications

Flash
Type     Ring Lite, twin circular flash tubes, and separate Controller Unit
Flash Control System     Control in E-TTL Mode:
FP Sync, FE lock, Flash +/- compensation, Flash Exposure Bracketing

Control in Manual Mode:
Flash +/- compensation

Ratio Control in Manual: L:R tubes (A:B); 8:1 – 1:1 – 1:8 in 1/2-stop increments
Custom Functions     Twelve (in addition to any on camera), set on flash LCD; three Personal Functions
General
Power Source     4 AA batteries in Controller (Alkaline, NiCd, Lithium and Ni-MH type AAs are OK)
External Power Source     Compact Battery Pack CP-E4
