Description
DATALITE LED DISPLAY

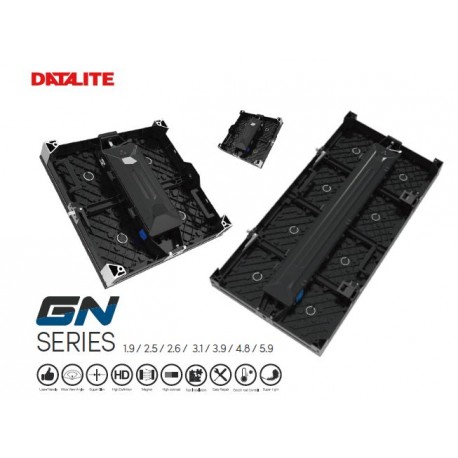

GN P3.9 Fix Indoor Series
Total Size : 6m W x 3m H = 18 ㎡2
Cabinet Size : 500*1000mm
set
Total Kabinet : 12pcs W * 3pcs H = 36pcs
Total Resolution : 1534* 767pixels
Specifications :
Pixel pitch : 3.91mm
Pixel density : 65,536 pixels/㎡
Pixel configuration : SMD2020
Module size : 250*250mm
Driving IC : ICN2038S/FM
Cabinet dimension : 500*1000mm
Structure Material : Die Casting Aluminum
Cabinet weight : 13.5kg
Maintenance : Front access
Power supply : POWERLD
Air plug : Seetronic
Brightness : 800 nits, adjustable
Driving mode : 1/16 scanning, constant current
Viewing angle : W: 160° H: 140°
Grey scale level : 12~16bit
Refresh rate : ＞1000Hz, adjustable
Life time : 100,000 hours
Input voltage : 100~ 240 VAC, 50/60 Hz
Power consumption : Max: 228W/pcs
Temperature range : -0℃ ~ +45℃ (operational)
Humidity : 10% ~ 90% (operational)
IP rating (Front/Rear) : IP40/IP21
Control system : Novastar, Synchronous control
Signal transmission : ＜100m (CAT5), 100~500m (multimode)
500m ~ 10km (single mode)
Signal : DVI up to UXGA, SDI, HD-SDI, S-video, etc.
Operating system : WIN7, WIN8, WINDOWS XP, etc.
Sending Card, Receiving Card & LED Software included
