Description

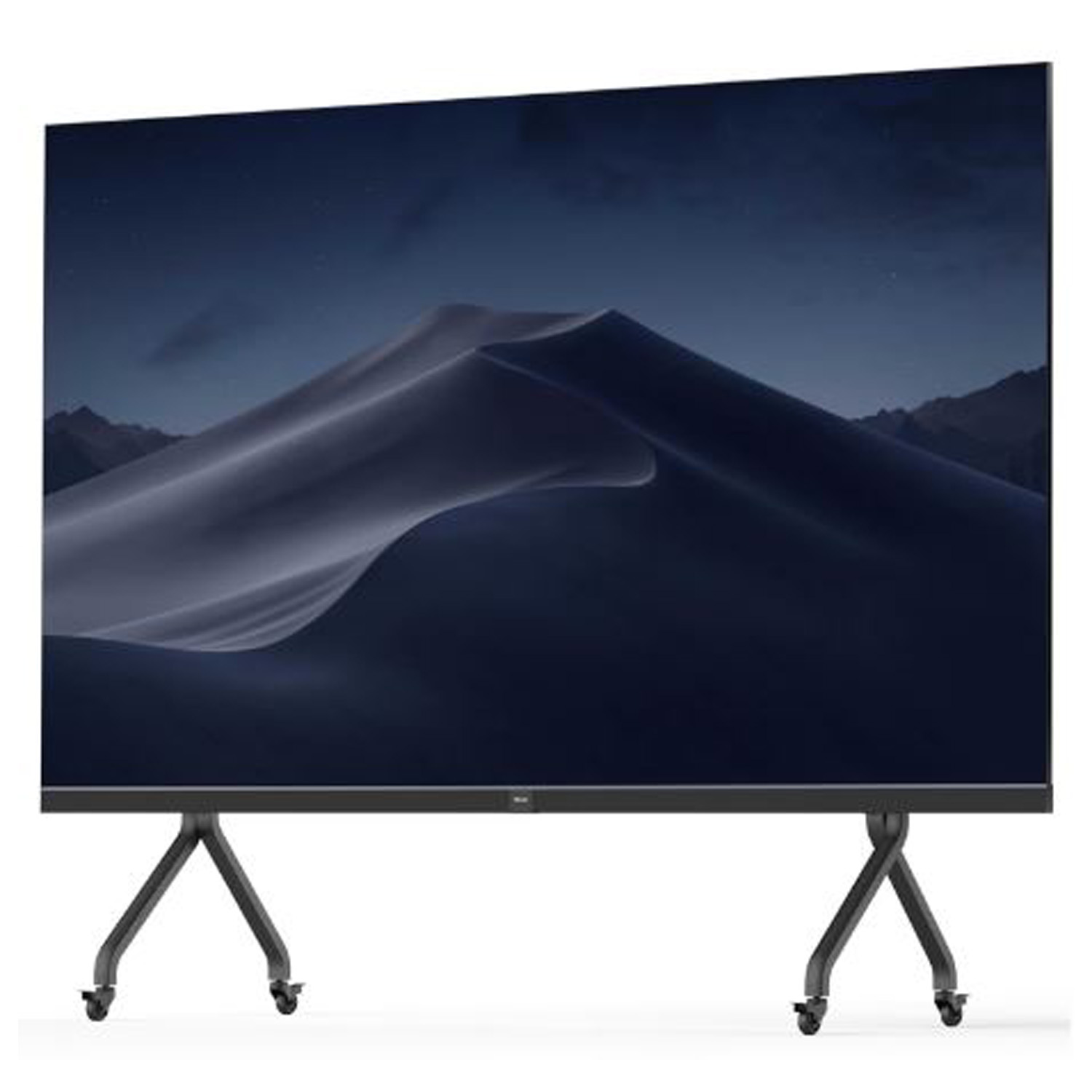

HAIO 163DE
Create the ultimate immersive AV experience for your boardroom with the Hisense All-In-One LED display. Delivering vivid detail and unrivalled colour depth, the All-in-one 163” LED display will provide finishing touch to any quality meeting space.
Ultra Picture Quality Chip
Relying on Hisense’s super picture quality chip, supported by powerful algorithms, colour enhancement, multi-grayscale correction, MEMC, HDR, SR super resolution four major picture quality technologies, the picture quality is more detailed and vivid.
Stereo Surround Sound
Equipped with 60W built in speakers, Dolby & DTS audio dual decoding, impactful bass and crisp treble to create a truly immersive stereo surround sound.
Automatic PQ Adjustment
Hisense HAIO series, the spare lamp board can be directly replaced, intelligent reading lamp board data, automatically complete the colour correction
Simple Precise Design

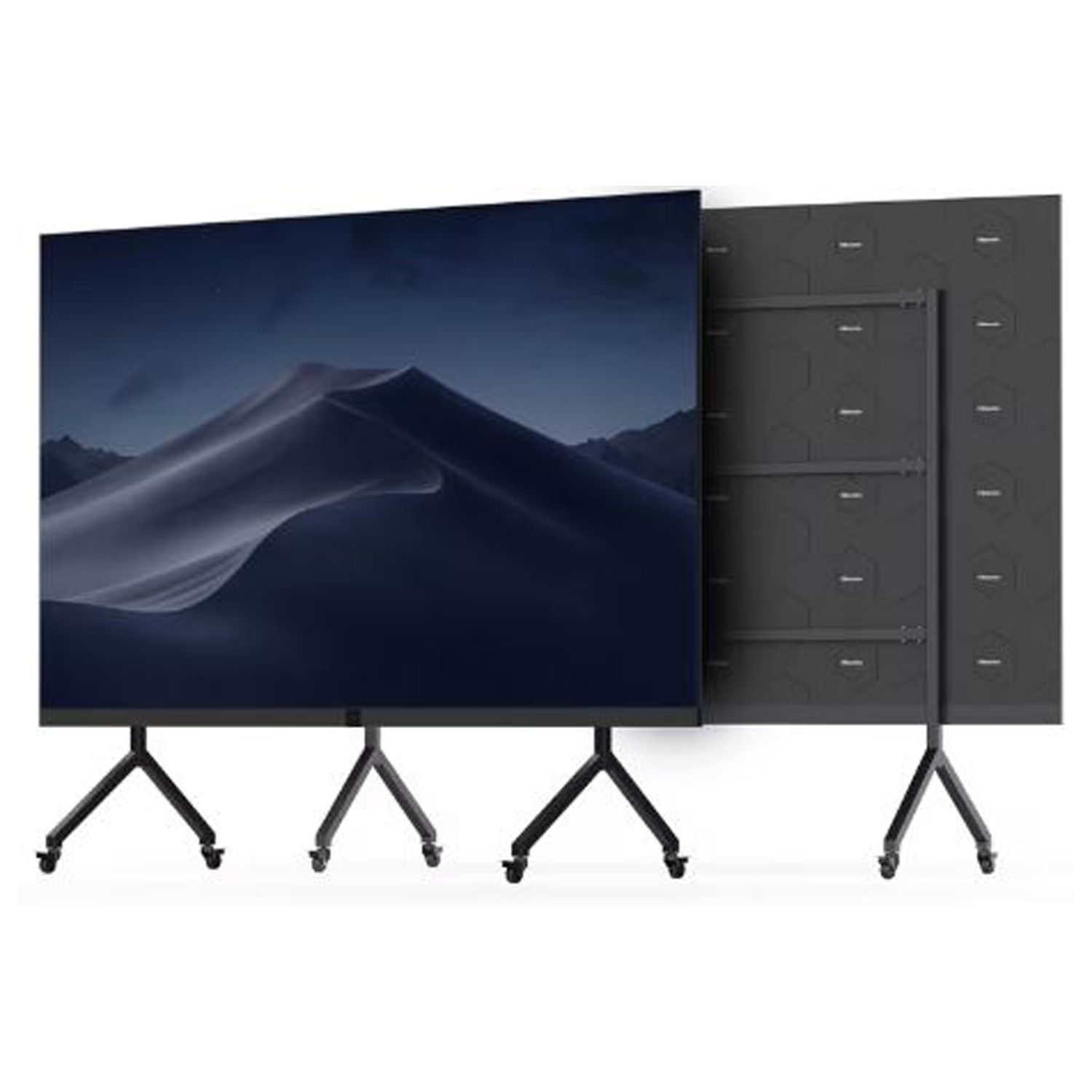

Industrial aesthetic minimalist integrated design. The thinnest lightweight body at only 32.3mm means occupying less space for the display. An ultra-narrow bezel, 95% screen ratio and elegant design of wall bracket and mobile cart.
Smart Display
Automatically adjust the brightness of the LED all-in-one screen according to the environment. Automatic all-round monitoring of the screen status. Up to three intelligent screen casting methods.
Energy Saving
With our efficient power supply and 3-in-1 minimalist ASIC architecture, along with common-negative driver and super energy-saving algorithms, we have significantly reduced energy consumption, aiding in minimizing environmental impact. Additionally, our advanced technology allows us to maintain a maximum temperature of 40°C for the screen body, ensuring users enjoy a comfortable and safe experience when close to the screen. This not only enhances user comfort but also prolongs the display’s lifespan. Overall, our commitment to innovation and sustainability enables us to create a high-performance display solution that prioritizes energy efficiency and user comfort.
Quick Installation and Easy Maintenance
Complete installation within 1.5 hours for 2 persons with a fully automated configuration setup. Full front installation and maintenance helps to minimise installation space.

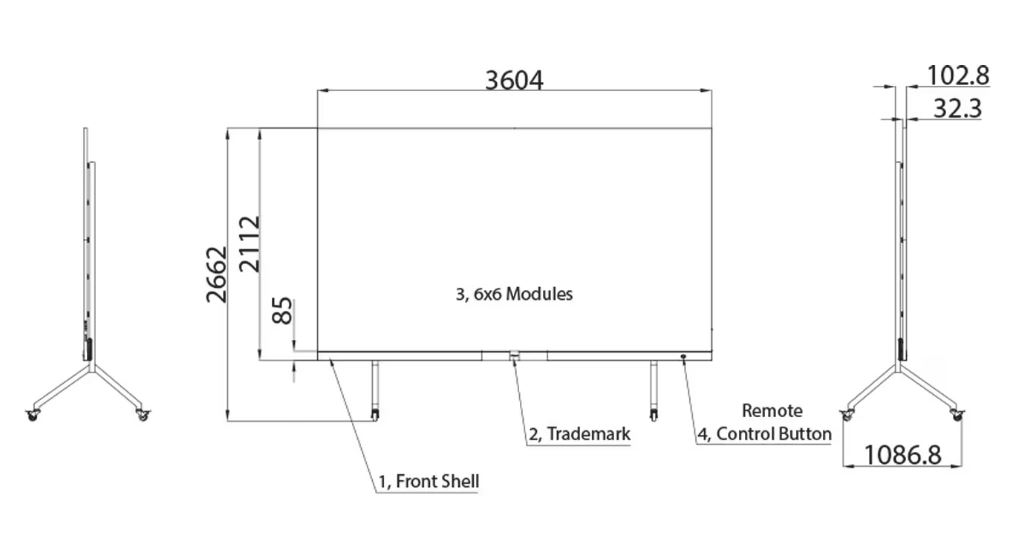

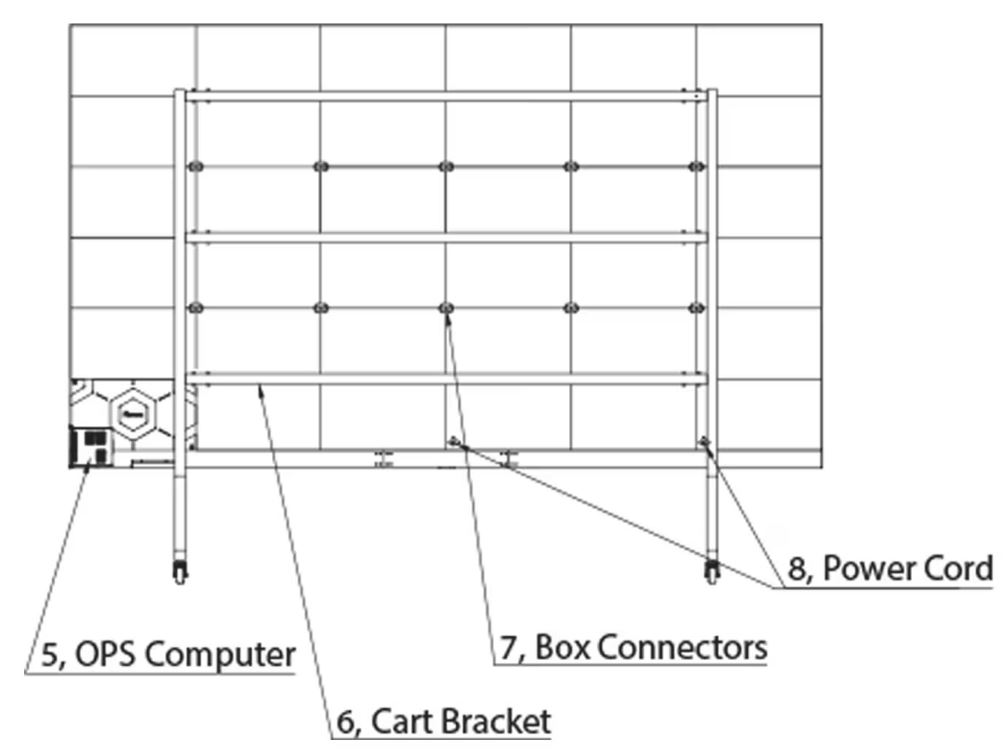

Dimensions
SPECIFICATION |
|
Physical |
Pixel Pitch: 1.875mm Pixel Configuration: 3 in one SMD (with Glue On Board) Screen Resolution (WxH): 1920 x 1080 Module Dimensions (WxH): 150 x 337.5mm / 5.9 x 13.3 inch No. of Modules Per Screen (WxH): 24 x 6 (Total 144 Pcs LED Modules) Screen Dimensions (WxHxD) *With Screen Frame: 3604 x 2112 x 32.3mm* / 141.8 x 83.1 x 1.27 inch* Product Dimensions (With Mobile Cart) *With Screen Frame: 3604 x 2662 x 1086.8mm* / 141.8 x 104.8 x 42.7 inch* Panel/Cabinet Dimensions (WxHxD): 600 x 337.5 x 32.3mm / 23.6 x 13.3 x 1.27 inch Weight (per panel / screen): 4kg / 162kg // 8.82lbs / 357.14lbs Pixel Density: 284,444 pixels/m2 Flatness of Cabinet (mm/inch): ±0.05mm Cabinet Material: Die-cast Aluminium Grey Level: 14 bits Aspect Ratio: 16:9 Service Access: Front |
Optical |
Brightness: 500 nits (100~500 nits Adjustable) Contrast Ratio: 5,000:1 (According to current Hisense test environment) Visual Viewing Angle (HxV): 150° x 140° Brightness Uniformity: 95% Colour Uniformity: ±0.003 Cx,Cy Processing Depth: 14 bits Colour Temp – Default (Adjustable): 6500 K (2,000 ~ 9,300 K) |
Electrical |
Power Supply Voltage: 100-240V, 50/60Hz Average Power Consumption (W/Screen): ≤720 Max Power Consumption (W/Screen): ≤2100 Refresh Rate: 3,840Hz WiFi: 2.4G & 5G Bluetooth: 5.0 Input: HDMI(2.0) IN x3 (include 1 interal) USB2.0 x1 USB3.0 / Type-C (not full function) x1 RS-232 x1 (internal) LAN x1 Output: SPDIF x1 Audio Out x1 |
Operating Condition |
Operating Temp/Humidity: 0 – 40°C / 10% – 90%RH (no frost) Storage Temp/Humidity: -20 – 40°C / 10% – 65%RH (no frost) Expected LED Lifetime (typ): 100,000 Hrs |
Speaker |
Built-in: 10W x 6 External: 3.5mm Audio external sound system connector (prior to the built-in sound system connector) |
System |
OS: Android 9.0 CPU: CA73*4 1.3GHz GPU: G52 MC1 DDR: 3GB ROM: 64GB Language: Chinese / English (Default) / French / German / Spanish / Italian / Polish / Arabic / Russian |
Package Solution 1 (Flight Case) |
Packing Method: Flight case for Cabinets / Modules / Wall Bracket and Accessory Packaging Dimensions (WxHxD): 1120 x 2100 x 768mm 44.09 x 82.67 x 30.23 inch Net / Gross Weight (w Wall Bracket): 162kg / 230kg // 357.14lbs / 526.90lbs |
Mobile Cart (Optional) |
Packaging Method: Wooden Box (For Mobile Cart) (Option) Packaging Dimensions (WxHxD): 2551 x 192 x 1037mm / 100.43 x 7.55 x 40.82inch Net / Gross Weight: 57kg / 110kg // 125.66lbs / 242.50lbs |
Miscellaneous |
Curve Support (-:concave +:convex): Flat, Flat Controller: Embedded Standard Accessory: User Manual / Remote Control / Battery / Vacuum Tool / Wall Bracket Optional Accessory: Mobile Cart (LGR00401A) Hisense Dongle (HT002)* Camera (HMC03-1080P, 25M)* OPS (S02BDs&AA21E/5A811E) |
Available Regions |
EU APAC SA USA |
