Rp30.269.700
– Windows 10
– OPS Module i5
– 8GB Memory
– 256GB Storage
– Integated Graphic Card

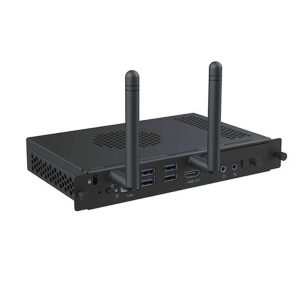

Core i5 PC Module for Maxhub Interactive Flat Panel,12th Gen Intel Core i5, 8GB RAM, 256GB Internal Storage
Maxhub OPS72 i5 PC Module ensures fast performance, Easy to install in the OPS slot, it’s perfect for classrooms and business meetings.
| I/O Interface | Quantity | I/o Interface | Quantity |
| Power_LED | 1 | DP OUT | 1 |
| HDD_LED | 1 | HDMI OUT | 1 |
| Power button | 1 | 03.00 | 4 |
| Antenna | 2 | USB Type-C | 1 |
| Reset | 1 | Mic In | 1 |
| LAN | 1 | Audio Out | 1 |
SPECIFICATION |
|
CPU |
CPU : 12th Gen Intel Core i5 Core : 12 Threads : 16 Base Frequency : 4.6GHz Max Frequency : 1.7GHz TDP : 28W Cache : 12MB |
MEMORY |
Type : Dual channel DDR4 3200MHz Interface : 260-Pin DDR4 SODIMM Size : 8GB/16GB Storage : 256GB |
80Pin OPS INTERFACE |
HDMI : 1×HDMI2.0 (Max resolution 3840×2160@60Hz) DP : 1×DP (Max resolution 7680×4320@60Hz) USB : 1×USB3.0, 1×USB2.0 DC power : 12~19V DC |
INTERFACE |
USB : 4×USB3.0, 1×USB Type-C Audio : 1×MIC in (Pink), 1×Line Out (Green) Ethernet : 1×RJ45 (10/100/1000M) HDMI : 1×HDMI 2.0 (Max resolution 3840×2160@60Hz) DP : 1×DP (Max resolution 7680 × 4320@60Hz) HDD_LED : 1×HDD LED (Running: green LED blinking) POWER_LED : 1×Power LED (Running: red LED) Antenna : 2×2.4G/5G Dual frequency antenna Power button : 1×Power button Others : 1×OS reset |
POWER |
Power Supply Mode : 80Pin OPS interface power supply Input : 12V~19V Max Power Consumption : 80.7W Standby Power Consumption : 2.9 |
PHYSICAL |
Dimensions LxWxH : 180x119x30mm Dimension (package) L×W×H : 1PCS: 267×192×72mm, 10PCS: 551×378×220mm Net Weigh : 0.6kg Gross Weight : 1PCS: 0.97kg, 10PCS: 10.65kg |
ENVIRONMENTAL |
Operation Temperature : -10℃~45℃ Operation Humidity : 10%~90%RH Storage Temperature : 10%~90%RH Storage Humidity : -20℃~60℃ |
| CPU | : | 12th Gen Intel Core i5 |
| Max Frequency | : | 4,4GHz |
| Memory | : | 8GB |
| Storage | : | 256GB |
| Operating System | : | Windows 10 |
| Warranty | : | 3 Tahun |
