Description

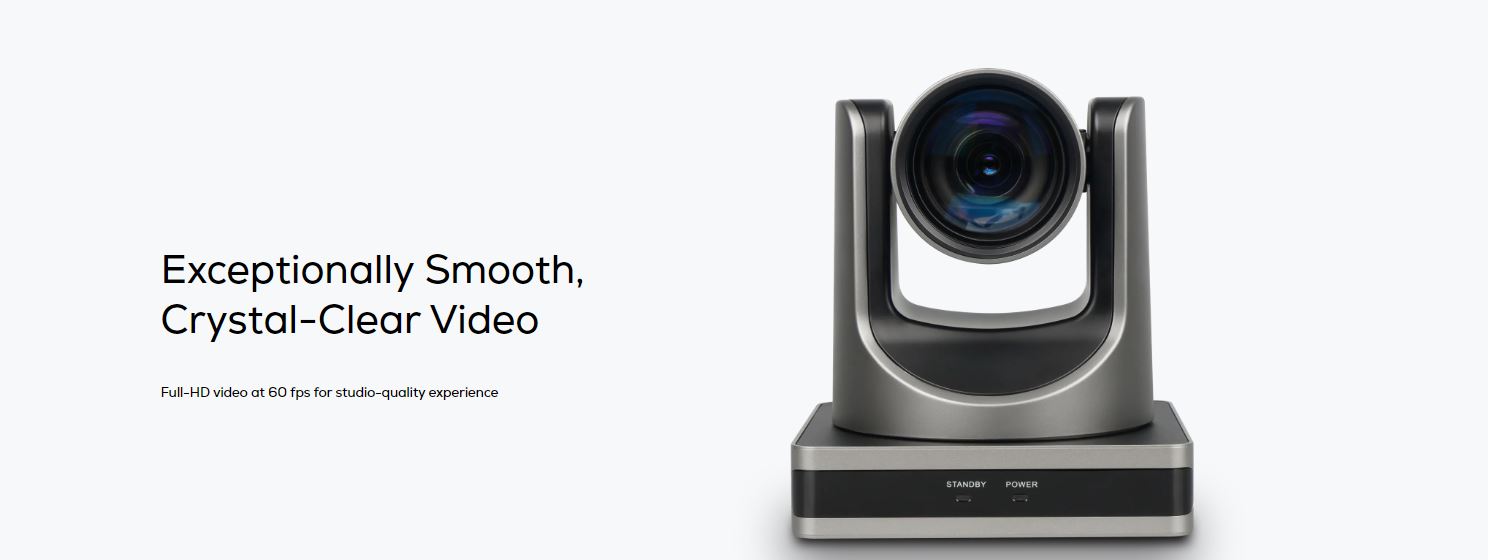

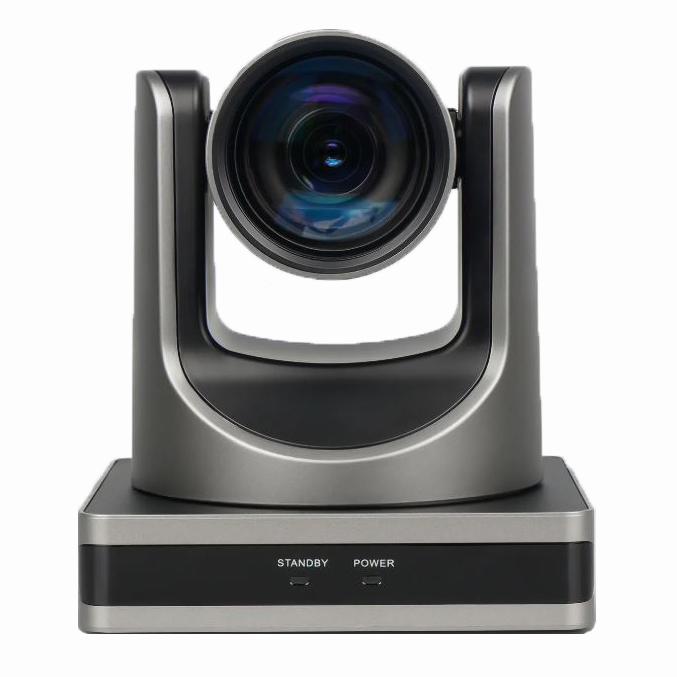

MAXHUB UC P15
Full HD PTZ Camera with Clear Video Imagery for Medium to Large Meeting Room
Product Specifications
Camera
· Full HD 1/2.8”, CMOS, 2.07M Pixel
· Video System: 1080P60, 1080P50，1080P30，1080P25，720P60，720P50
· Progressive Scanning
· 12x Optical Zoom
· 192x Total Zoom (16x Digital)
· Lens: f3.5mm ~ 42.3mm, F1.8 ~ F2.8
· Min. Illumination: 0.5Lux @ (F1.8, AGC ON)
· Shutter: 1/30s ~ 1/10000s
· White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
· Backlight Compensation
· 2D&3D Digital Noise Reduction
· Video S/N: ≥55dB
· Horizontal Angle of View :72.5°~ 6.9°
· Vertical Angle of View: 44.8°~ 3.9°
· Diagonal Angle of View: 85.2°
· Pan: ±170°
· Tilt: -30° (down) +90° (up)
· Pan Speed Range: 2.7° ~ 35.7°/s
· Tilt Speed Range: 2.7° ~ 31.5°/s
· Horizontal & Vertical Flip
· Support Image Freeze
· Number of Preset: up to 255
· Preset Accuracy: 0.1°
Network Features
· Video Compression:H.264/MJEPG
· Dual Video Stream
· Main Stream Resolution: 1920×1080, 1280×720, 1024×576,960×540,640×480,640×360
· Sub Stream Resolution: 1280×720, 1024×576, 720×480,720×408,640×360,320×240, 320×180
· Video Bit Rate: 32Kbps ~ 102400Kbps
· Bit Rate Type: Variable Rate, Fixed Rate
· Frame Rate: 50Hz: 1~ 50fps, 60Hz: 1~ 60fps
· Audio Compression: AAC
· Audio Bit Rate: 96Kbps, 128Kbps, 256Kbps

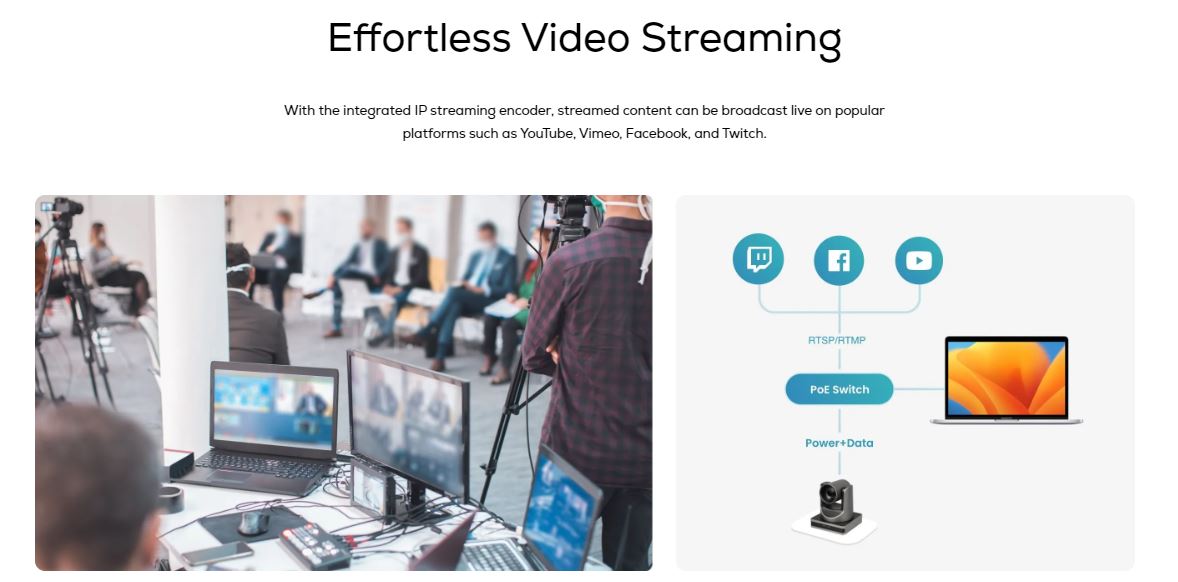

· Support protocols: TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast, etc.
Power

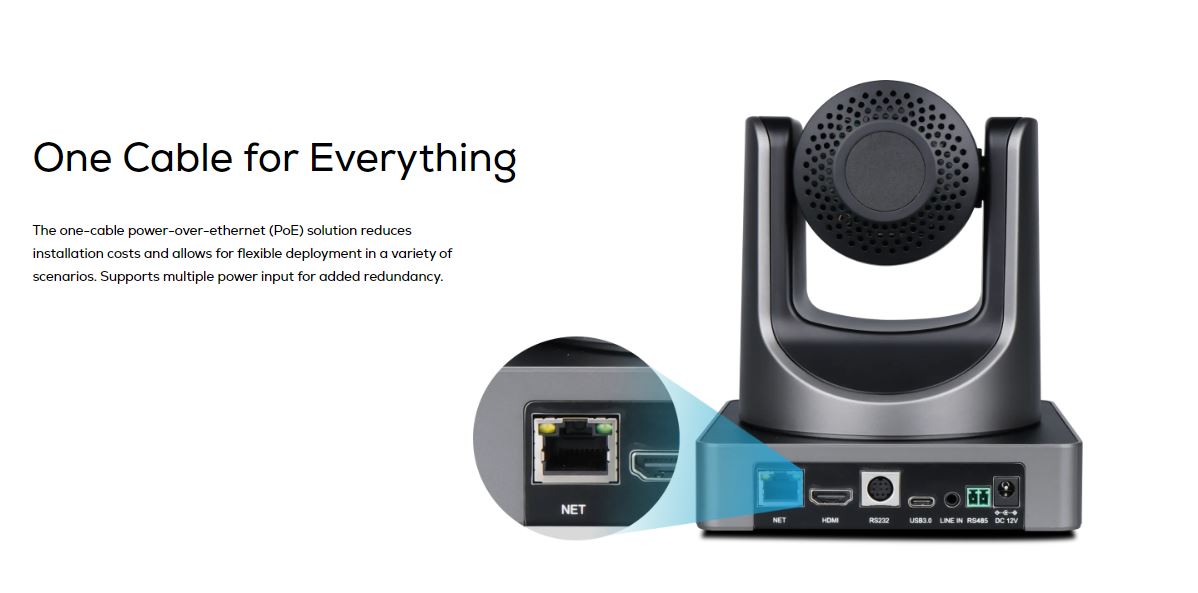

· Simultaneous power input: Power jack DC 12V/ USB DC 5V/ PoE (802.3af)
· Current Consumption: 12V 1.0A (Max) / 5V 1.5A (Max)
· Power Consumption: 12W (Max)
USB Features
· Operating System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
· Video Format: YUY2, MJPEG, H.264
· Resolution: Max 1080P@60fps
· Type-C USB 3.1 Gen 1, backward compatible with USB 2.0
· UVC 1.1~1.5
· UAC 1.0

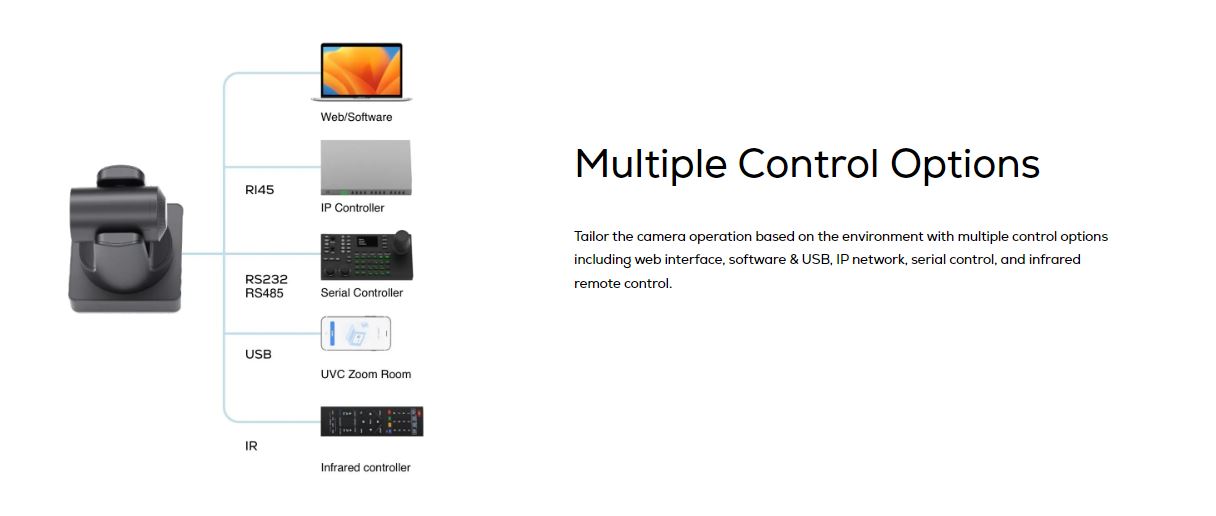

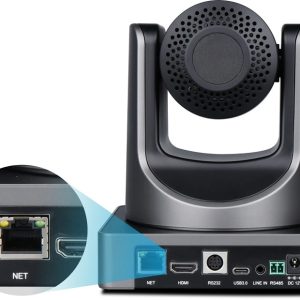

Input/ Output Port
· USB 3.1 Type-C
· HDMI 1.4b
· RJ45, 10/100Mbps Ethernet
· 3.5mm Jack, Line In
· RS232, 8pin mini DIN
· RS485, 2-core Phoenix Port
· Power Jack, EITA type DC IN 12V
Physical Specifications
· Camera Dimension L×H×D : 144 x 144 x 167.9 (mm)
· Net Weight:1.41Kg
· Package Dimension L×H×D: 230 x 230 x 250 (mm)
· Gross Weight: 2.5Kg
Package Contents
· UC P15 Camera
· Lens Cover
· USB 3.0 Cable
· Power Adaptor
· Remote Control
· Wall-mount bracket
· Mounting Screw Set
· User Manual
Compatible Applications
Support Major VC Software including ZOOM, Microsoft® Teams, Google Meet, Google Hangouts, Cisco WebEx®, RingCentral, etc.,
Warranty
· Camera 3 Years Hot Swap
· Accessories 1 Year
