Rp20.516.130

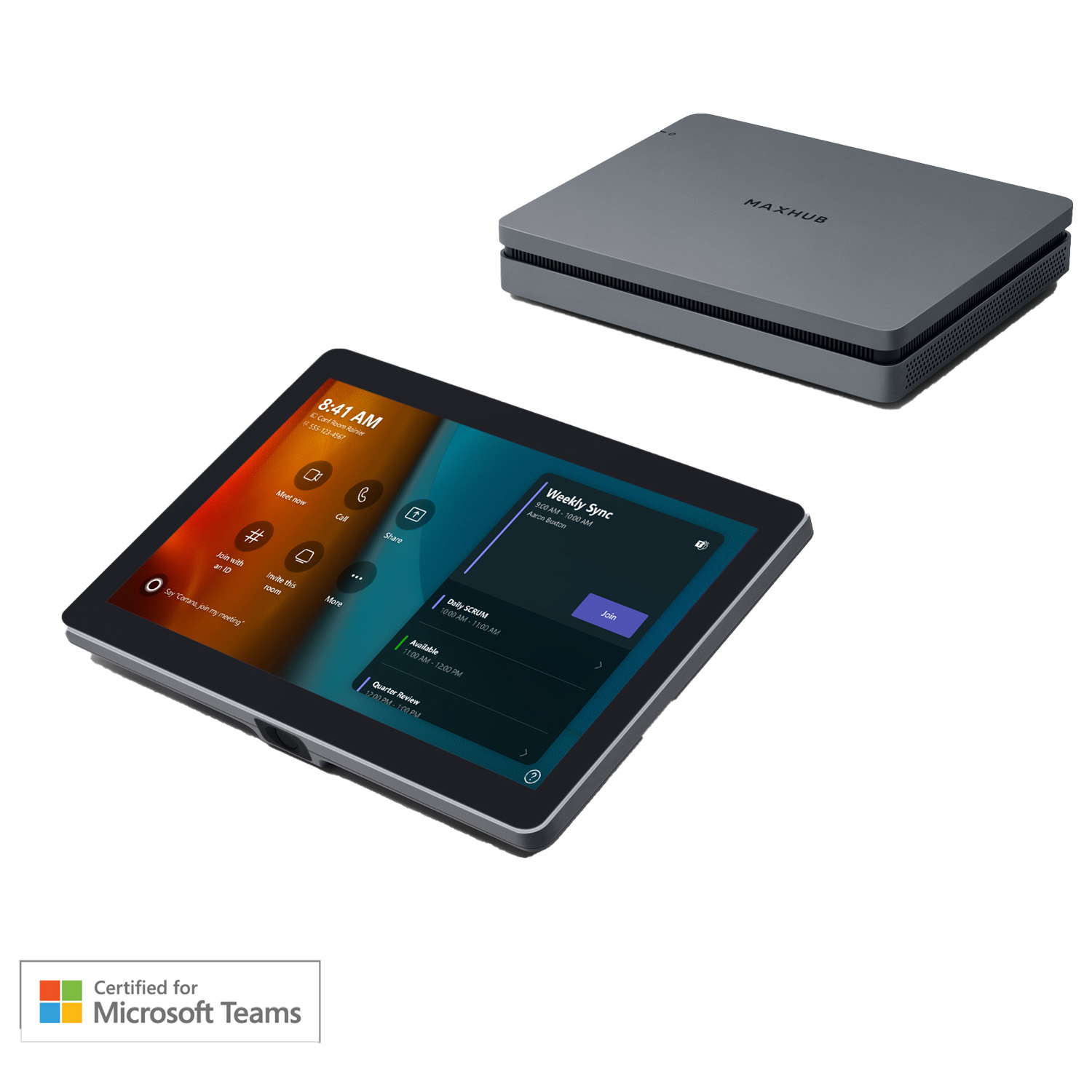

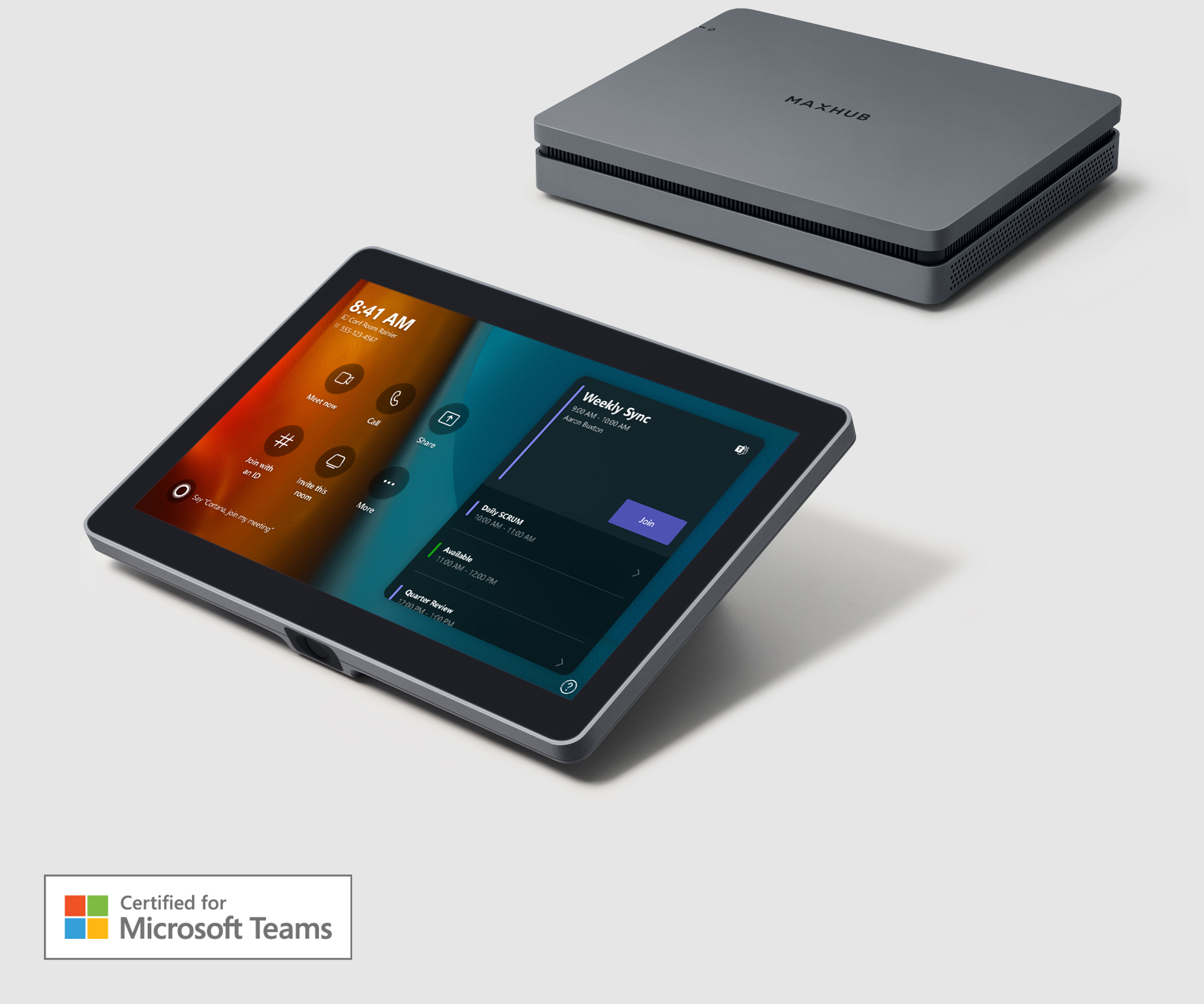

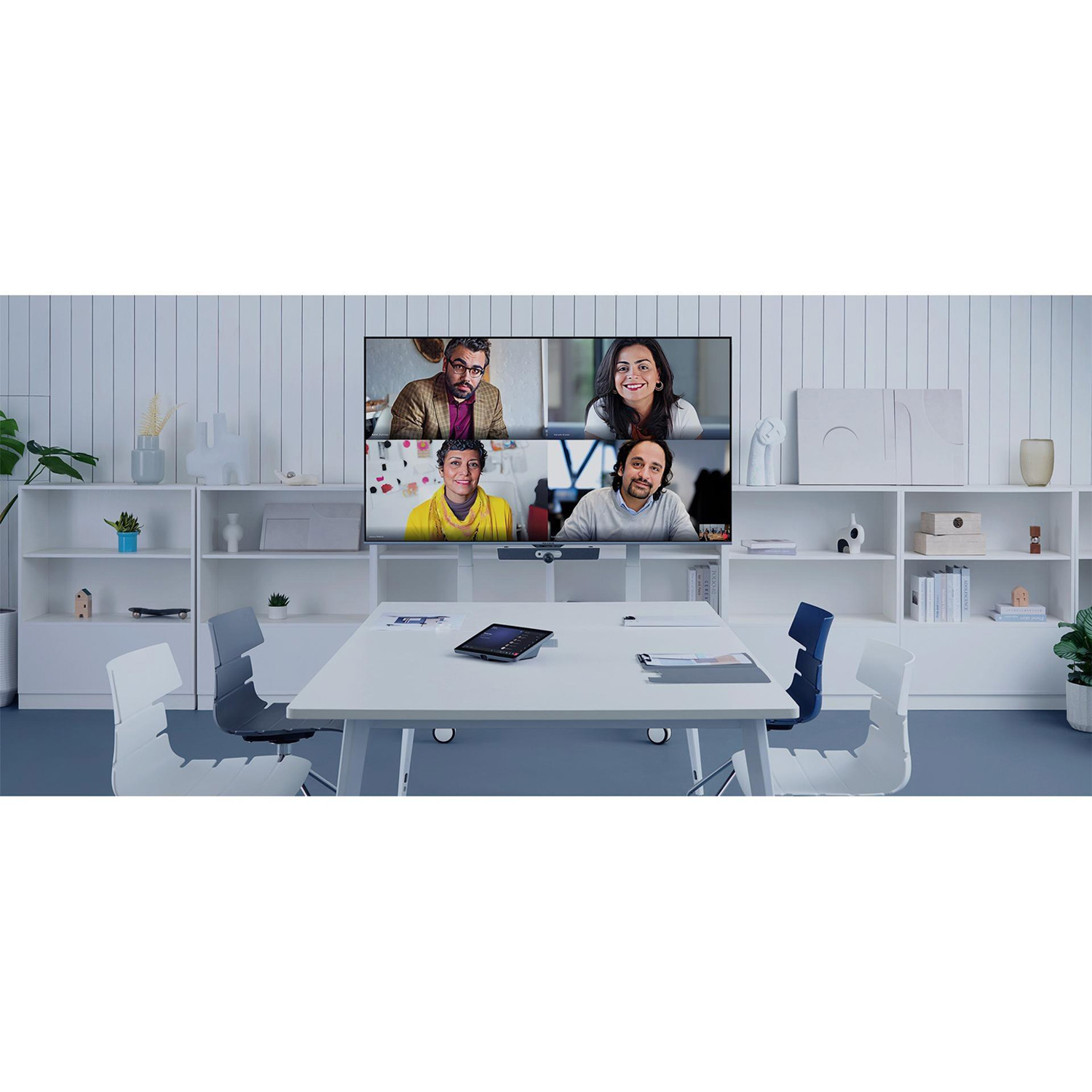

Elevate your focus and small BYOD meeting spaces with the MAXHUB XCore Kit, a certified entry-level Microsoft Teams solution that includes a console and a Windows-based computer.

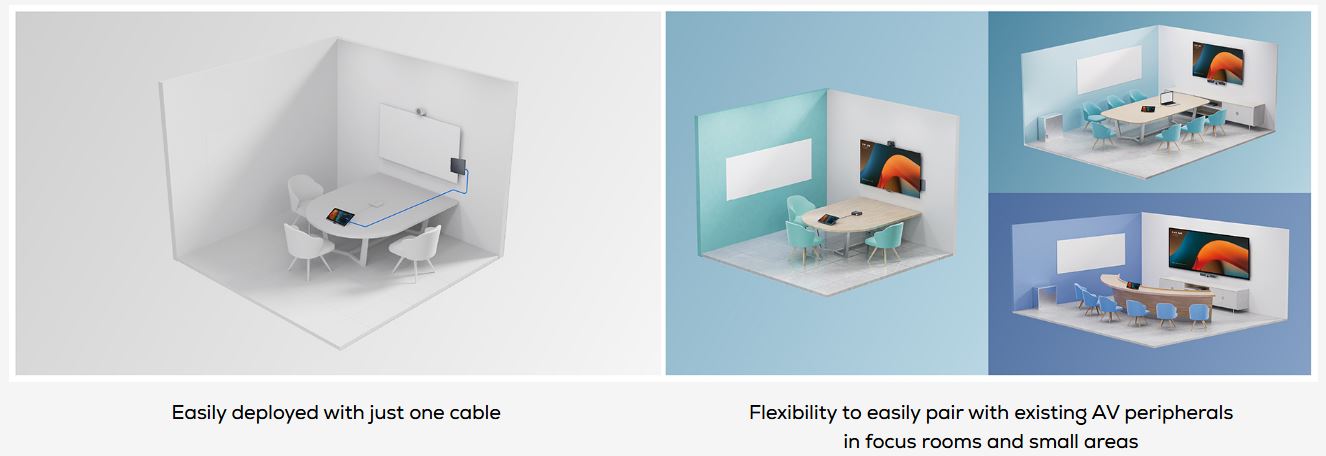

A single cable connects the Windows Computer to the Touch Console. You can then easily pair this powerful Teams Rooms Solution with your existing AV peripherals in focus rooms and small areas.
XCore Kit |
|
XCore Kit Package Includes |

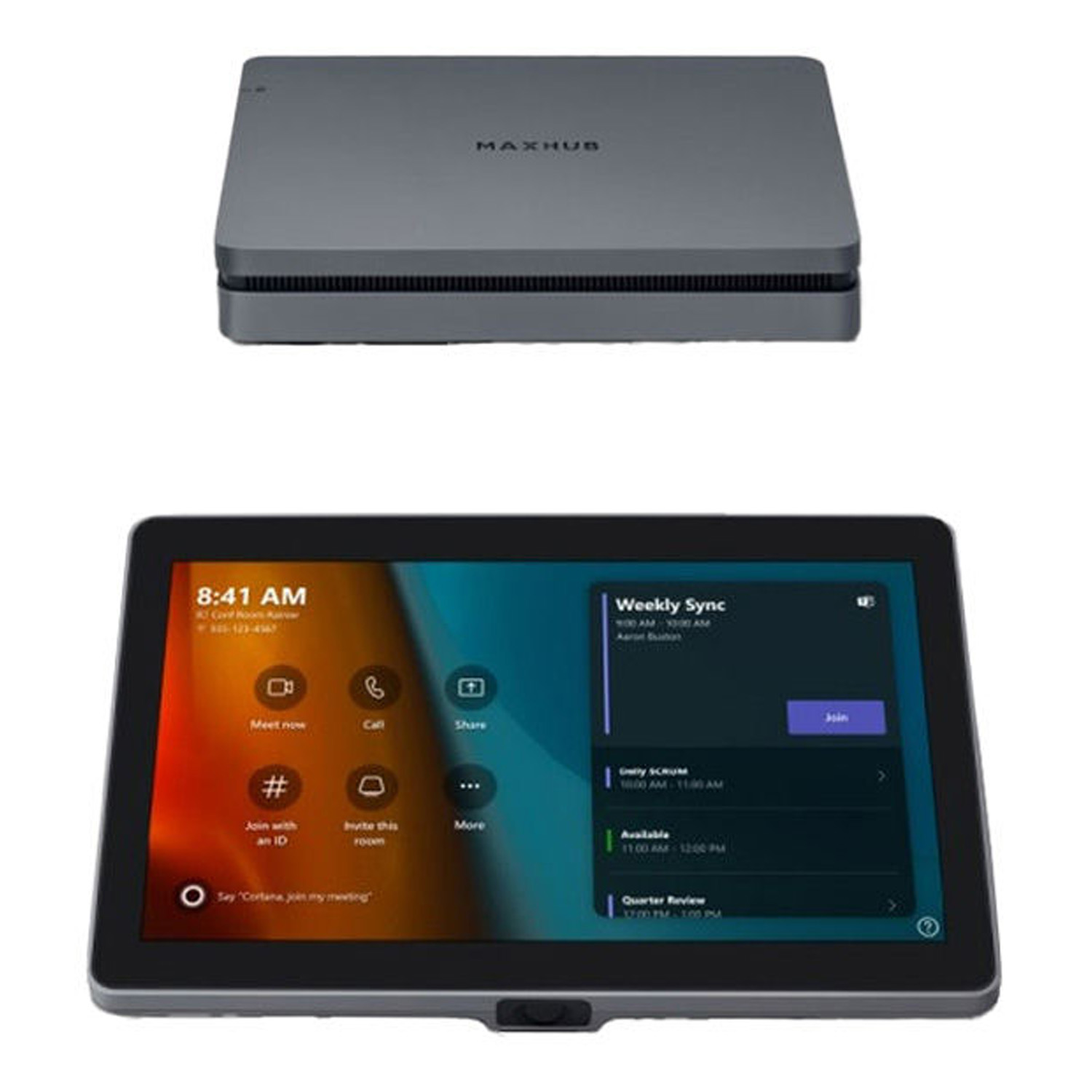

1. XC13T Mini-PC x1 2. TCP20T Touch Control Panel x1 |
Package Physical Specifications |
Package Dimension (L*W*H) : 890 × 270 × 265 mm / 35.04 × 10.63 × 10.43 in Net Weight : 2.24 kg / 4.94 lbs Gross Weight : 8.611 kg / 18.98 lbs |
Environmental Conditions |
Operation Temperature : 0°-40°C / 0°F-104°F Operation Humidity : 10%~90% RH Storage Temperature : -20°C-60°C / -4°F-140°F Storage Humidity : 10%~90% RH Altitude : Below 5000 m/ 16404 ft |

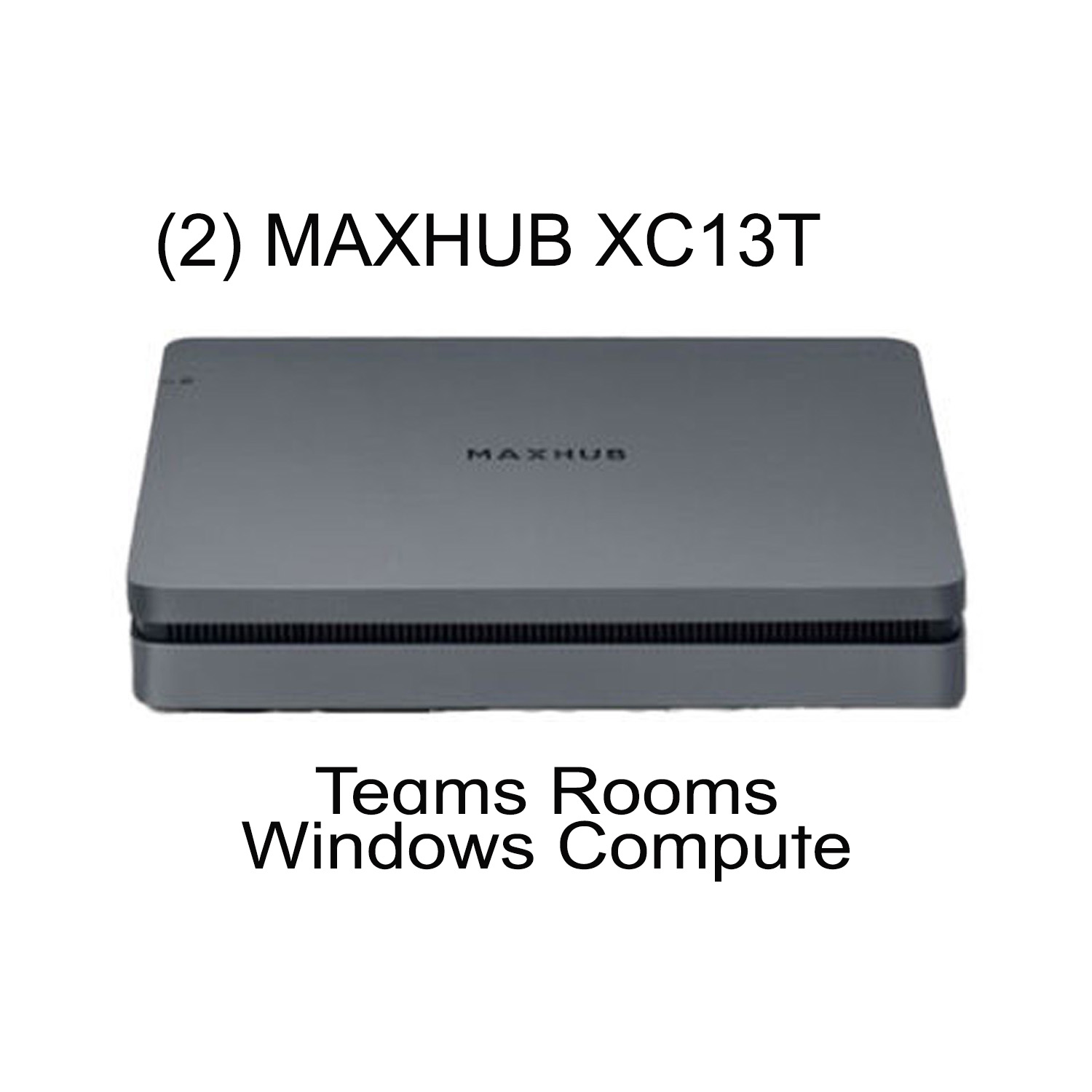

XC13T Mini-PC |
|
Product Specification |
Type : Mini-PC CPU : 12th Gen intel i3 Memory : 8GB DDR4 3200MHz SO-DIMM × 2 Storage : 128GB SATA SSD (M.2-2280 SATA3 up to 6Gb/s) Graphics : Intel® UHD Graphics for 12th Gen Intel® Processors; Network : 1000Mbps RJ45 Operating System : Windows 11 IoT Enterprise SAC Application : Microsoft Teams Room |
I/O Port |
USB-A 3.0 : 4 LAN : 1 USB-C (For Teams Rooms Console) : 1 HDMI Out : 1 Audio Out : 1 AC Power : 1 Kensington Lock Slot : 1 |
Power |
Power Supply Mode : AC POWER Power Requirements : 100-240V AC 50/60 Hz Max Power : 90W |
Accessories (included in the package) |
Wall Bracket : x1 PC Bracket : x1 Cable Cover : x1 HDMI Cable (1.8 m/5.9 ft) : x1 Power Cord (1.8 m/5.9 ft) : x1 Quick Start Guide : x1 |
Physical Specification |
Product Demension : 230 × 185 × 41.5 mm / 9.06 x 7.28 x 1.63 inch Product Weight : 1.36 kg / 3 lbs |

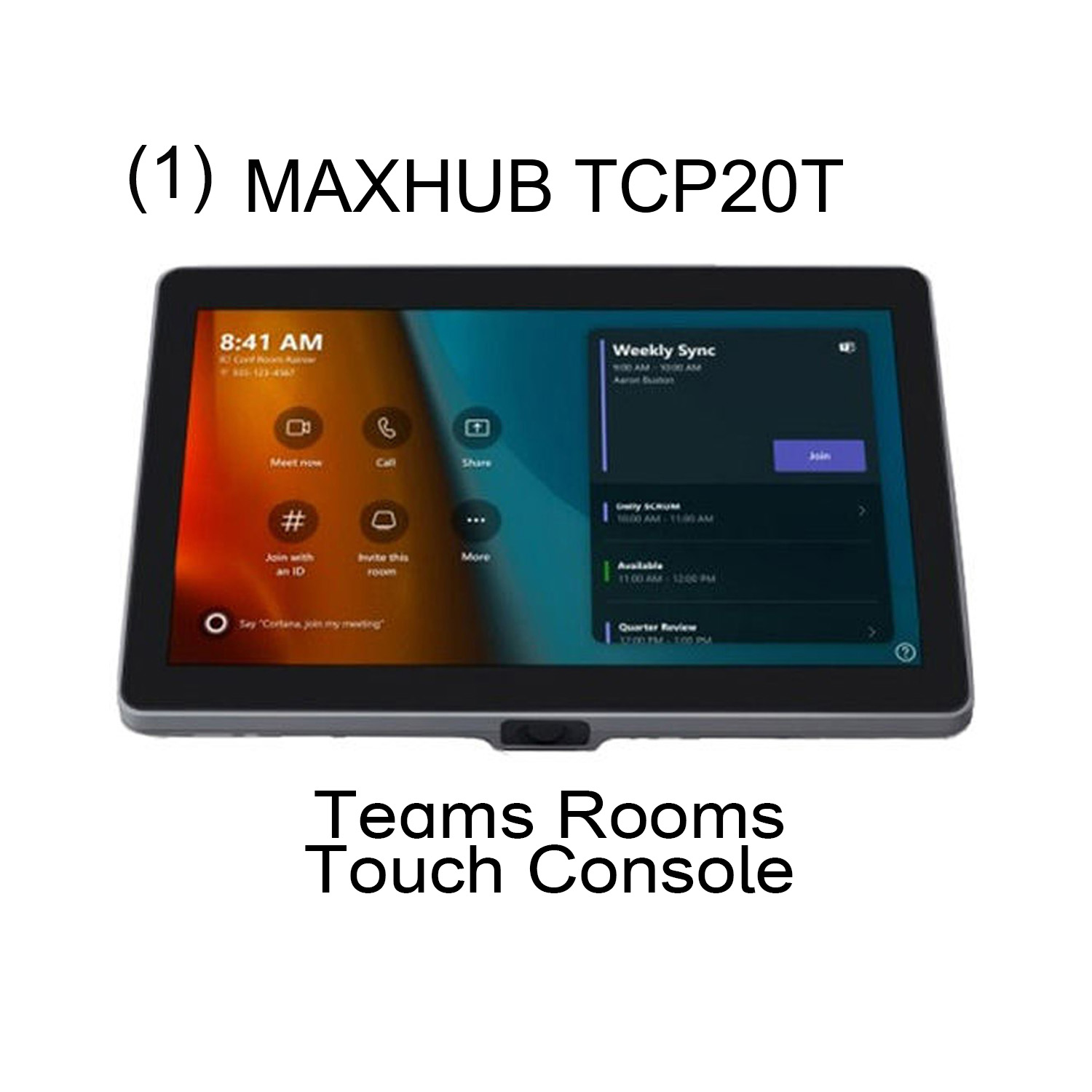

Touch Control Panel TCP20T |
|
Display |
Size : 10.1 ich Resolution : 1920 (H) x 1200 (V) Frequency Refresh Rate : 60 Hz Back Light Unit : ELED Brightness with Glass : Min.250cd/m², Typ.300cd/m² Life Time : ≥ 20000 Hours |
Touch System |
Type : Capacitive touch Surface Treatment : Anti-fingerprint, Anti-glare |
I/O Port |
HDMI In (Content Sharing) : 1 USB-A 2.0 (For USB Audio Peripherals, Keyboard, Mouse only) : 1 USB-C 3.1 (for Connection to XC13T Mini PC) : 1 Audio Out (headphone ,w/o mic) : 1 |
Sensor |
Motion Sensor : PIR sensor for auto wake-up |
Accessories (include in the package) |
USB Type-C Cable (Type C-C) 5m / 16.4ft : x1 HDMI Cable 1.8m / 5.9ft : x1 Quick Start Guide : x1 |
Physical Specification |
Product Demension : 230 × 185 × 41.5 mm / 9.06 x 7.28 x 1.63 inch Product Weight : 1.36 kg / 3 lbs |
