Description

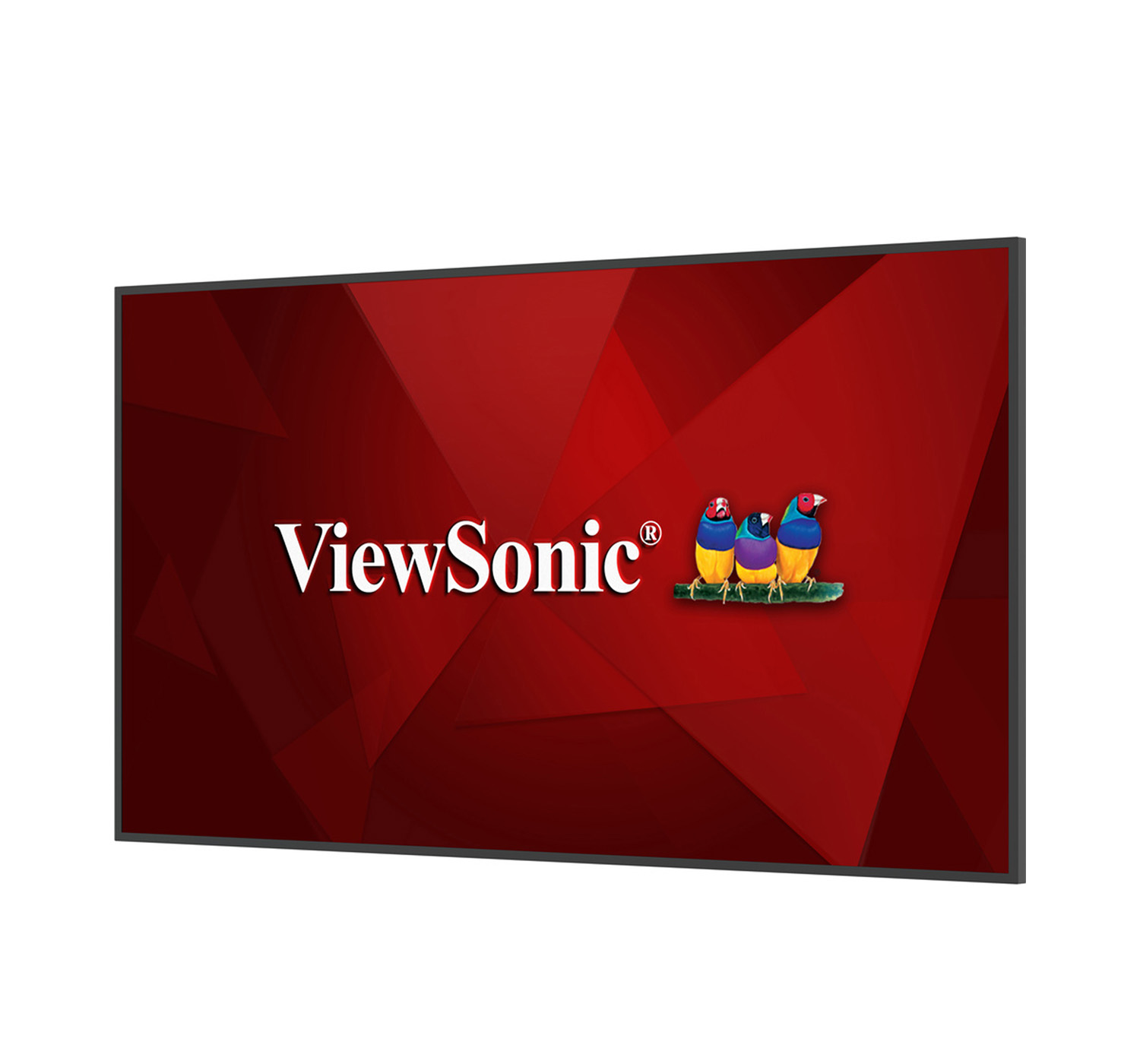

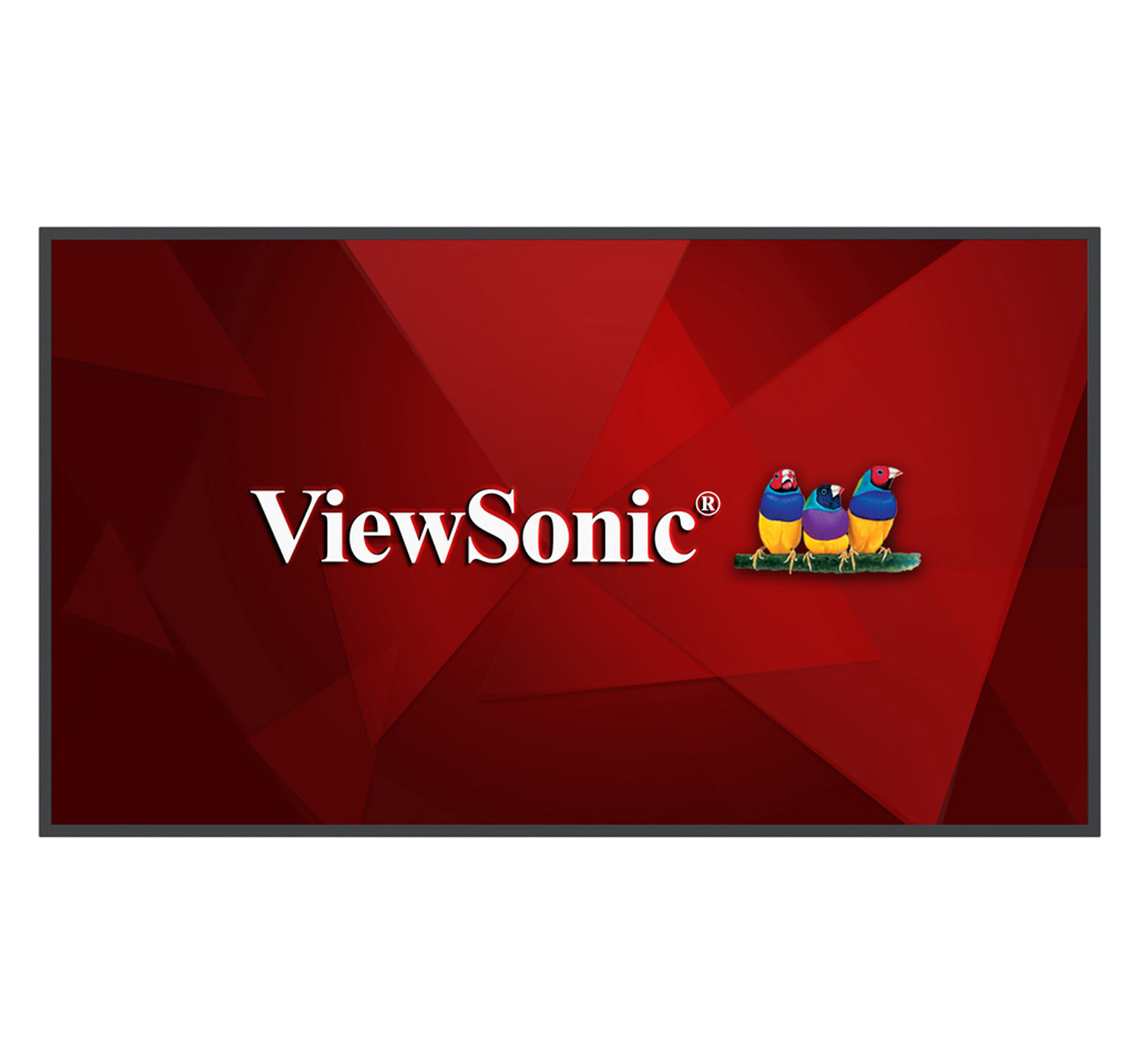

CN4301-1C
- Offers 24/7 non-stop playback in both landscape and portrait modes.
- Single USB-C port provides a one-cable solution for diverse content sharing.
- Intuitive signage player supports various content formats, scheduling, and uninterrupted playback.
- Effortless wireless casting with AirPlay and Miracast for seamless connectivity
- High brightness of 520 nits delivers vibrant colors and enhanced image clarity
OVERVIEW
Transform your visual communication with the CN Series, boasting 4K Ultra HD clarity and flexible display orientations for both landscape and portrait modes. Perfect for corporate and educational settings, this series ensures high performance and sustainable operation. It features an easy-to-use signage player for diverse content management and continuous playback. Effortlessly connect with wireless casting options like AirPlay, Miracast, and Chromecast. Available in sizes from 43″ to 75″ with HDMI input, the CN Series caters to all your communication needs, enhancing every presentation and connection.
Commercial-grade Display
Engineered to perform relentlessly, the CN Series is built for continuous, 24/7 operation, ensuring that communication remains uninterrupted at all times. It boasts high brightness levels, providing exceptional visual clarity that stands out in any lighting condition. This makes it an ideal choice for environments where clear, visible content is critical around the clock.

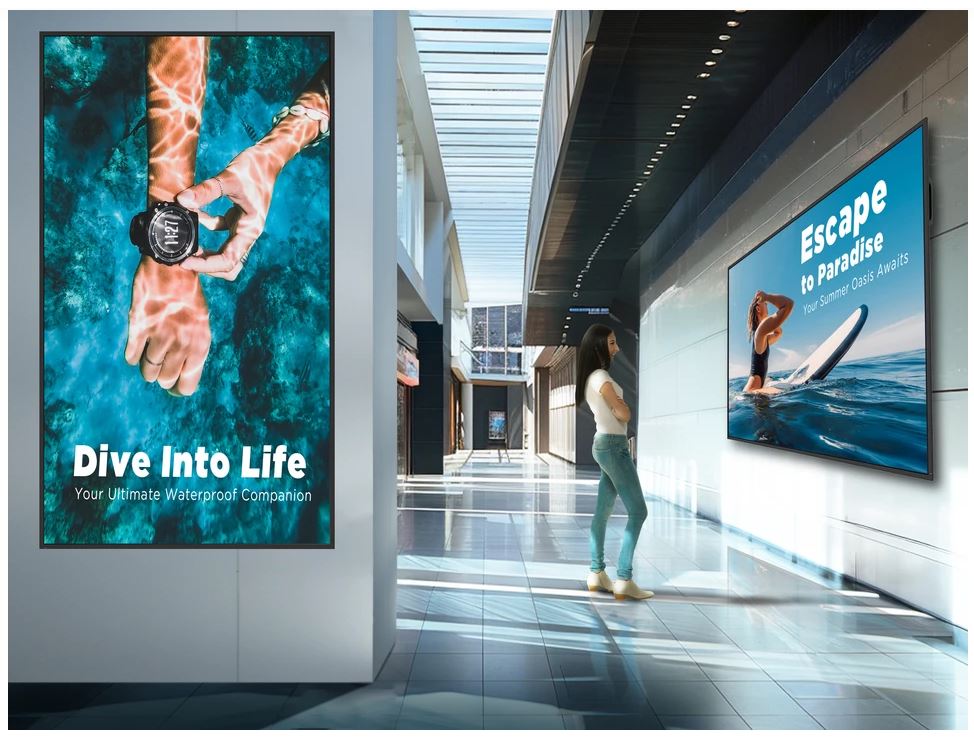

Landscape and Portrait Display Orientation
This commercial-grade display is ideal for digital signage. Featuring versatile orientation capabilities, it can easily switch between landscape and portrait modes, providing flexible display solutions for various settings.

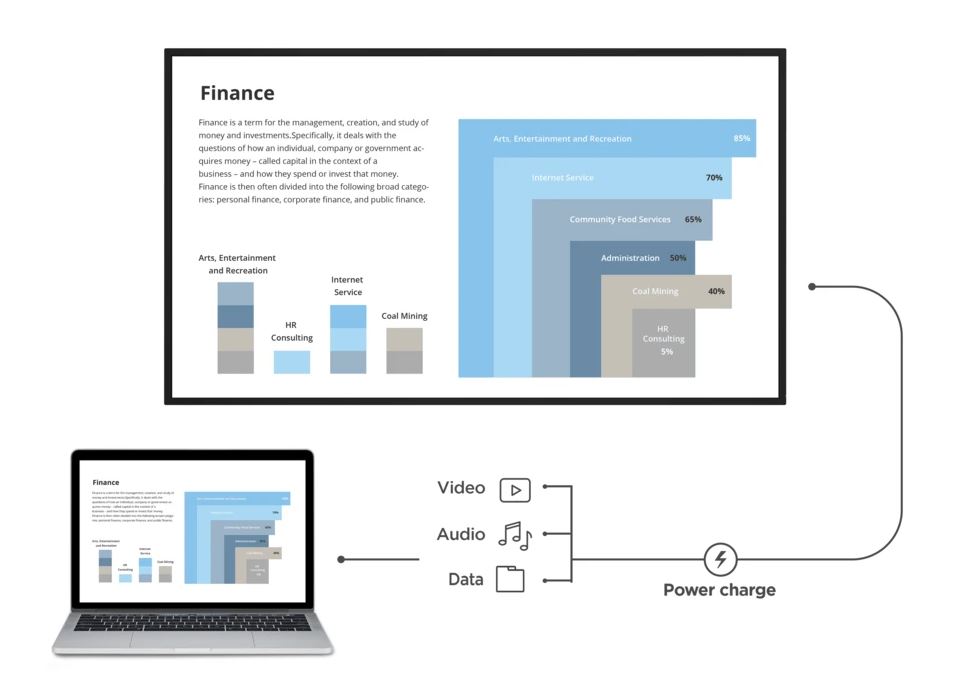

Connection Made Efficient
Check out the CN Series—designed to supercharge your efficiency with USB-C connectivity! This all-in-one solution merges high-speed data transfers, multimedia broadcasting, and device charging—all through a single cable. Get ready to experience operation and efficiency like never before!
Wireless Content Sharing
The CN Series takes wireless casting to the next level! This powerhouse supports a variety of cable-free sharing solutions, including AirPlay, Miracast, and Chromecast, making wireless screen sharing absolutely effortless. Dive into seamless, versatile connectivity and enjoy the freedom of presenting and collaborating without any cords.
SPECIFICATIONS
Panel Size: 43″
Type/ Tech: TFT LCD Module. DLED backlight
Display Area (mm): 941.184(H) × 529.416(V) (42.5”)
Native Resolution: 3840 x 2160
Aspect Ratio: 16:9
Colors: 1.07G (8bits + FRC)
Brightness: 520 nits (typ.)
Contrast Ratio: 4000:1
Response Time: 6.5ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours
Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
Orientation: Landscape & Portrait
INPUT
HDMI: 2.1 x2 (HDCP 2.2)
RS-232: x 1
IR Pass Thru: x1
OUTPUT
RS232: x1
IR Pass Thru: x1
RJ45: x 1
USB
Type A: 2.0 x 2
Type C: x1 (DP1.2, PD 15W, USB2.0)
Speakers : 10Wx2
Embedded OS : Android 14
POWER
Voltage: 100-240V AC +/- 10%
Consumption: On: 98W ; Off <0.5W
Packaging (inch / mm): 42.32 x 25.67 x 5.67 in/ 1075 x 652 x 144 mm
Gross (lb / kg): 25.35 lb/ 11kg
2. Quick Start Guide
3. 2M Power Cables
4. Wall Mount & Screw x 4
5. Compliance statement
