ViewBoard 8632

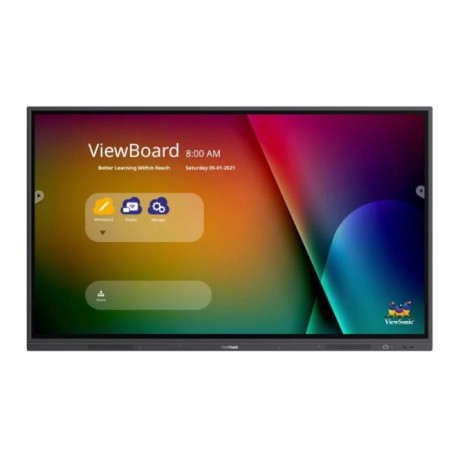

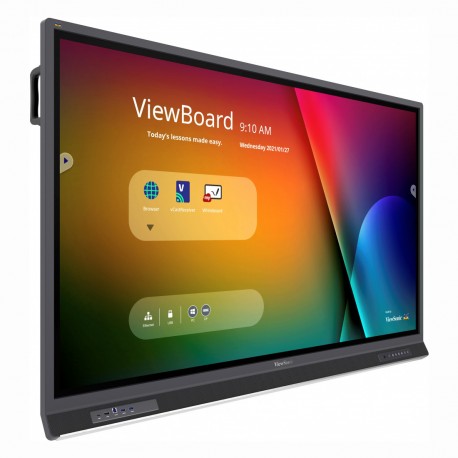

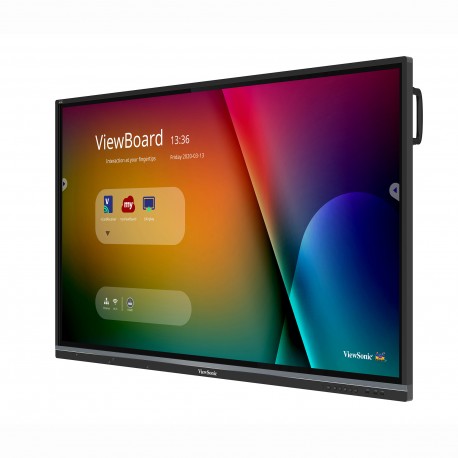

ViewBoard® 86″ 4K Interactive Display
- myViewBoard™ suite with whiteboard, wireless casting and remote device management
- Front-facing dual speakers for better engagement
- Pen-on-paper writing experience with Ultra Fine Touch Technology
- Quad Core CPU powered by Android 9.0 OS
- Low blue light certified
The ViewBoard® 32 series provides a comprehensive solution for schools and teachers looking to deliver more interactive and engaging lessons. The 4K UHD display features bonding technology for clearer colors and less glare. A 20-point touchscreen interface allows users to collaborate naturally either with a finger or one of the ViewBoard styluses. The built-in access to the myViewBoard suite brings together all of the hardware with a seamless software integration. The display also features Ultra Fine Touch Technology that delivers a paper-like writing experience with instant response and high accuracy, while dual-tip pen support allows you to simultaneously write or draw with two different colors. Users will also enjoy additional connectivity via the SmartPort™ USB and multi I/O ports, including HDMI/VGA, when looking to connect other devices for further classroom support. The included myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools including simple, wireless casting capability with secure single sign-on, innovative collaboration tools, easy conversion of common files, and much more. Additionally, myViewBoard Manager offers a single-point management system capable of simultaneously controlling multiple displays.
Education essentials
Get a full suite of tools designed with educators in mind
Quick connection. Simple.
The myViewBoard Display allows wireless mirroring from compatible browsers on any network without cables or apps.
Flexible learning tools
Built-in the myViewBoard WhiteBoard makes collaboration easy.
|
Prepare a great lesson
Make your lessons stand out with a wide range of media and integration with a wide range of presentation tools. |
Present the lesson
Make it easy to share and save all your lessons directly from the whiteboarding software right out of the box. |
Participate in the lesson
Open lessons up to real-time participation with quizzes, polls, and student’s own multimedia contributions. |
Efficient in remote management
The myViewBoard Manager for remote device management. Reduce IT workload with scheduled device updates, message broadcast, and system changes applied across multiple devices.
Easy collaboration
Designed for sharing ideas and student collaboration, the ViewBoard® 32 series include 20 touchpoints and ultra-fine touch dual-pen function without any setup. Automatically match colors and thicknesses to the pen without switching mode.
*Image shown is for illustration purposes only. Actual product may vary.
Surprising sound
Dual built-in 10W front-facing speakers take multi-media lessons to the next level.
Fully integrated inputs
Expand presentation capabilities and save time with multiple, easy-access HDMI, VGA, and USB ports.
Shared via USB port
SmartPort™ shared front USB ports for internal & external PCs.
A stand-alone computer
Unlock the full functionality of the ViewBoard® 32 series with an optional slot-in PC complete with Intel Core CPU standard OPS. All slot-in PC add-ons come preloaded with myViewBoard Whiteboard for Windows.
Web camera
Optional top-mounted webcam available for remote teaching and learning.
Fast Wireless Transmission
Optional Wifi module for the ViewBoard® 32 series. Support dual frequency 2.4GHz and 5GHz bandwidth, along with 802.11AC standard. It helps run lessons smoothly and get a better student engagement.
I/O Port
1. Smart Port USB™ X 2
2. Camera
3. LAN
4. RS232
5. HDMI X 2
6. USB 2.0
7. Touch
8. Audio Out
9. VESA® Wall Mount
10. 800 x 400mm
11. VGA
12. Audio In
13. Wi-fi Module Slot
SPECIFICATIONS
- Display
Panel Size: 86″
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1895.04(H) x 1065.96(V)mm (85.6” diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840×2160(Pixels)
Colors: 1.07B colors (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 4000:1
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Hardness: 9H Anti-glare coating
Orientation: Landscape - Platform
Processor: ARM quad-core Cortex-A55
RAM: 2GB DDR4
Storage: 16GB - Touch
Type/ Tech: Ultra Fine Touch Technology
Touch Point: 20 points touch, 2 points writing
- INPUT
HDMI: 2.0 x2 (3840×2160 @60Hz)
(HDMI2 port support ARC function)
RGB / VGA: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: x1 (Optional Intel Standard OPS)
WiFi: x1 (Optional VB-Wifi-002) - OUTPUT
Audio: x1 (Earphone out)
- LAN
RJ45: x1
- USB
Type A: USB2.0 Front x2 (SmartPort™ USB); Rear x2
Type B: x1 for HDMI/VGA touch - SPEAKERS
10W x 2 subwoofers
- Embedded OS
Android 9
- Bundle Software
Basic Annotation Software: myViewBoard Whiteboard
Pro Annotation Software: myViewBoard Whiteboard for Windows (Embedded in optional Windows Slot-in PC)
Wireless Presentation: myViewBoard Display - Special Features
All-in-one USB port: Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
Light Sensor: Yes - Power
Voltage: 162-240VAC +/- 10%
Consumption: On: 314W (typ.) / Off: <0.5W - ERGONOMICS
Wall Mount (VESA® ): 800×600
- OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)
Physical (inch / mm): 1957×1160×87 mm / 77×45.7×34.2 inch
Packaging (inch / mm): 2112×280×1283 mm / 83.1x11x50.5 in - WEIGHT
Net (lb / kg): 66.7kg/147lb
Gross (lb / kg): 84.2kg/185.6lb - REGULATIONS
BIS, CB, CE, LBL
- PACKAGE CONTENTS
1. Power cable (3 meters) / 2. Remote control / 3. USB cable (3 meters) / 4. Touch pen x 2 / 5. Quick start guide / 6. RS232 adapter / 7. Clamp x 5 / 8. Screw x 8 / 9. HDMI cable (3 meters)
- Compatible Slot-in PC
VPC12-WPO/VPC25/VPC2C/VPC27
