• Intuitive Interactive Interface and Eye-care Certified Display
• Synchronous Writing Performance with Dual Pens
• Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
• Native Whiteboarding Tool with built-in myViewBoard App
• Wireless Content Sharing and 4-way Split Screen with ViewBoard Cast App
• UFT (Ultra Fine Touch) Technology
• myViewBoard digital whiteboard software
• SmartPort shared front USB ports for internal & external PCs
• 2.0 Stereo sound

GAMBARAN

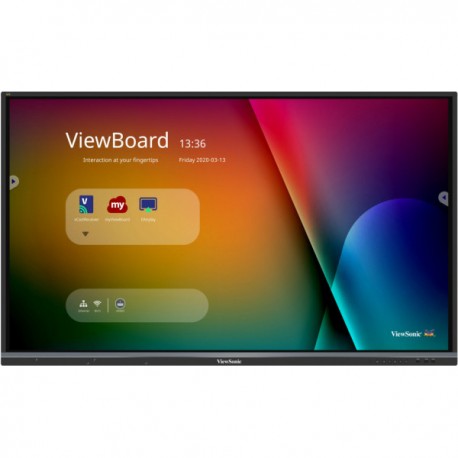

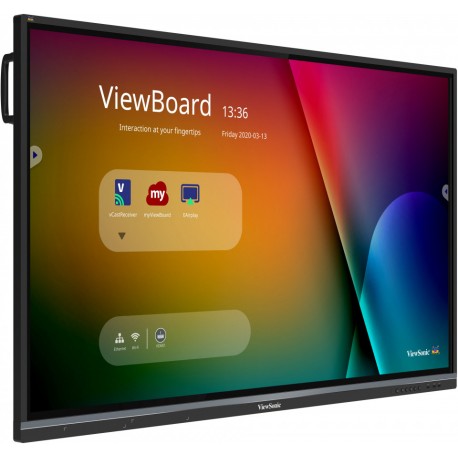

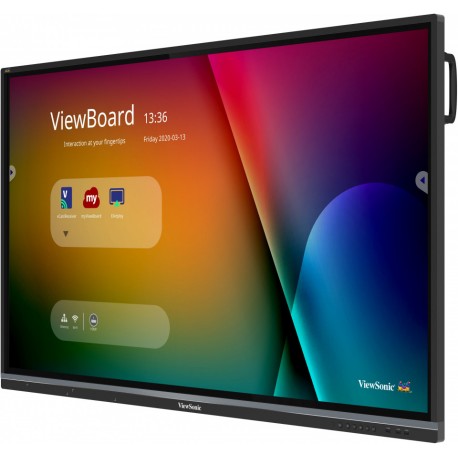

For teachers in the modern classroom, the ViewBoard® IFP50 series has the most intuitive interactive interface. It keeps continuous interaction within the first vision area and keeps everything within comfortable reach. Additionally, it is an eye-care certified display with low blue light and flicker-free at all brightness levels. The ViewBoard® IFP50 series further stands out with synchronous writing performance. You can write smoothly, with the pen that serves as an extension of your fingertips, and simultaneously with the equipped dual pens of different colors and thicknesses. The native built-in whiteboarding tool, myViewBoard®, further helps visualize your ideas with ease. The ViewBoard® IFP50 series is further complimented by wireless content sharing. Students can share their screens to the ViewBoard and vice versa with the built-in ViewBoard® Cast app. It is not limited to one-on-one presentation either. Teachers can advance to do group activities with the 4-way split screen display. Whether you’ve experienced good or lackluster classroom interaction in the digital whiteboarding world, the ViewBoard® IFP50 series will now allow you to work effortlessly in the classroom.

UFT Technology

Ultra Fine Touch Technology produces a lag-free, pen-on-paper writing experience. Writing accuracy is greatly improved and student-teacher interaction flows more naturally thanks to real-time response rates, dual-pen recognition and our new 3mm tipped pens.

Dual-Pen

Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.
*Image shown is for illustration purposes only. Actual product may vary.

.

Full Native Performance on ViewBoard OS

Built-in myViewBoard® digital whiteboard software to collaborate on the go.

.

4-way Split Screen

4-way split-screen content sharing with built-in ViewBoard® Cast software.

.

Shared USB Ports

SmartPort™ shared front USB ports for internal & external PCs.

.

Stereo Sound

2.1 Stereo sound with a built-in subwoofer.

.

Faster Internet

LAN sharing with slot-in PC provides a faster, more powerful internet connection.

.

Object Recognition and Windows Ink Compatible

Make annotations, write and draw on the whiteboard, Office365 or Windows Ink. Therefore your meetings will be more collaborative and interactive.

.

Remote Control

Built-in RS232 port and vController software for remote control.

.

Slot-in PC

Slot-in PC with Intel 8th-gen CPU (Optional).

.

Web Camera

Top-mounted 1080p web camera (Optional).

.

.

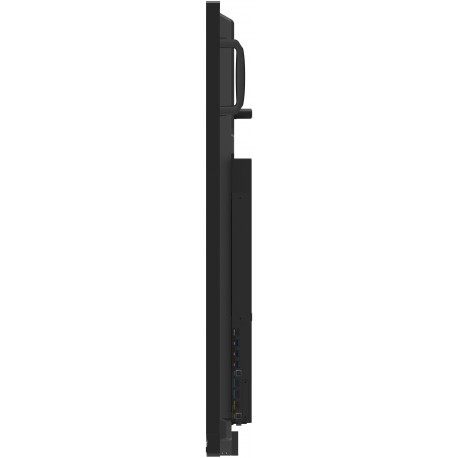

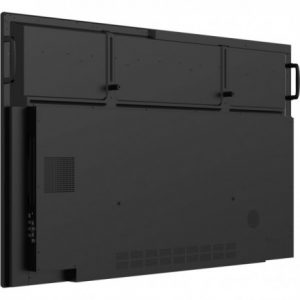

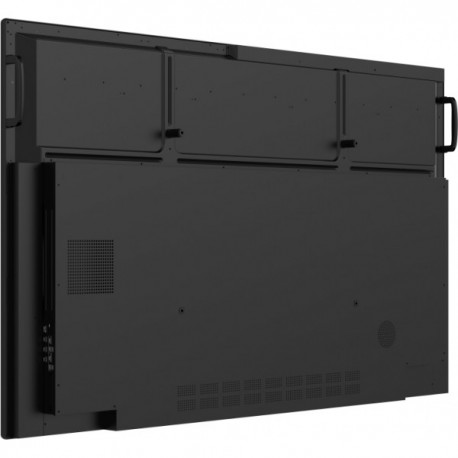

I/O Port

.

.

1	USB 2.0 X 2
2	HDMI OUT
3	USB 3.0 X 3
4	USB Touch Port
5	HDMI In X 3
6	USB Touch Port
7	VESA® WALL Mount 800×600 mm
8	AC IN
9	VGA
10	AUDIO IN
11	SPDIF Out
12	RS232
13	AUDIO OUT
14	LAN
15	USB 2.0

.

SPESIFIKASI

.

Tampilan	Ukuran Panel: 98″
	Type/Tech: TFT LCD Module with DLED Backlight.
	Area Tampilan (mm): 2171.85(H) x 1232.35(V) (97.52”diagonal)
	Aspect Ratio: 16:9
	Resolusi Asli: UHD 3840×2160(Pixels)
	Warna: 1.07B colours (10bit)
	Kecerahan: 350 nits (typ.)
	Rasio Kontras: 5000:1 (DCR)
	Waktu Respon: 6ms
	Sudut Pandang: H = 178, V = 178 typ.
	Backlight Life: 30,000 Hours (Min)
	Surface Treatment: Anti-Glare
	Orientasi: Landscape
Platform	Prosesor: ARM Cortex A73*2(1.5GHz)+A53*2(1.2GHz)
	RAM: 3GB DDR4
	Penyimpanan: 16GB
Touch	Jenis / Teknologi: IR Recognition
	Resolusi Sentuh: 32767 x 32767
	Titik sentuh: 20 points touch, 10 points writing
INPUT	HDMI: 2.0 x3 (3840×2160 @60Hz)
	RGB / VGA: x1
	Audio: x1 (PC audio in)
	RS232: x1
	OPS: x1 PC Slot
OUTPUT	HDMI: x1
	Audio: x1 (Earphone out)
	SPDIF: 1(optical)
	RS232: x1
LAN	RJ45: x1
USB	Tipe A: USB 2.0 x3
	USB 3.0 x3
	Tipe B: x2, for touch
SPEAKERS	12Wx2
Top Camera Plate	YES
COMPATIBILITY	HDMI: 3840×2160
Embedded OS	Android 8
FORMAT FILE YANG DIDUKUNG USB	FORMAT FILE YANG DIDUKUNG USB: Picture –
	BMP, JPEG, PNG,GIF
	Video –
	Codec: H.263, H.264, MJPEG, MPEG2, MPEG4, RV30/40, VP6, Xvid-ASP
	Container: 3GP, ASF, ASX, AVI, FLV, M4V, MKV, MOV, MP4, MPG, MPEG, RMVB, TS
	H.265
	Audio –
	Codec: AAC, ALAC, FLAC, MPEG 3, Vorbis, WAV, WMA
	Container: AAC, APC, FLAC, M4A, MP3, OGG, WAV, WMA
Bundle Software	Perangkat Lunak Anotasi Dasar: myViewBoard for android
	Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
	Presentasi Nirkabel dengan Umpan Balik Sentuhan: Viewboard Cast: ViewBoard Cast
Fitur spesial	Port USB All-in-one (menggabungkan port USB Windows / Android; tidak perlu membedakannya lagi): Front “SmartPort USB” to all channels.
	Berbagi LAN sederhana antara IFP dan perangkat slot-in: Yes
Power	Tegangan: 100-240VAC +/- 10% Wide Range
	Konsumsi: 171 (Typ.)
	< 0.5 W (“Off”)
ERGONOMICS	Wall Mount (VESA® ): 800 x 600
OPERATING CONDITIONS	Suhu (º C): 0°C to 40°C
	Kelembaban: 10% ~ 90% RH non-condensing
DIMENSI (W x H x D)	Fisik (inci / mm): 88.4 x 52.1 x 3.6 in / 2245 x 1323 x 91 mm
	Kemasan (inci / mm): 97.8 x 58.8 x 14.8 in / 2483 x 1493 x 376 mm
WEIGHT	Net (lb / kg): 223.77 lb / 101.5 kg
	Gross (lb / kg): 306 lb / 138.8 kg
REGULATIONS	FCC, cTUVus
Versi Energy Star	Versi Energy Star: ES8.0
Peringkat EEI	Peringkat EEI: A++
ISI PAKET	1. Power cable(3 meters) x 4 2. Remote control 3. USB cable(3 meters) 4. Touching pen x 2 5. Quick Start Guide 6. RS232 adapter 7. Clamp x 5 8. Plate 9. Screw x 8 10. HDMI cable
PC Slot-in yang kompatibel	VPC14-WP series
	VPC10-WP series
	VPC15-WP series
	VPC16-WP series
	VPC17-WP series
