Description
VPCF5-W55-G1-2A
- Windows 11 Pro
- An ideal integrated solution for ViewBoard interactive displays & presentation displays
- Powered by Intel 12th generation processors with embedded TPM2.0
- DP1.4 port supports up to 5K resolution at 60Hz, delivering clear and detailed content
- Enhanced system stability, security, & thermal control
OVERVIEW

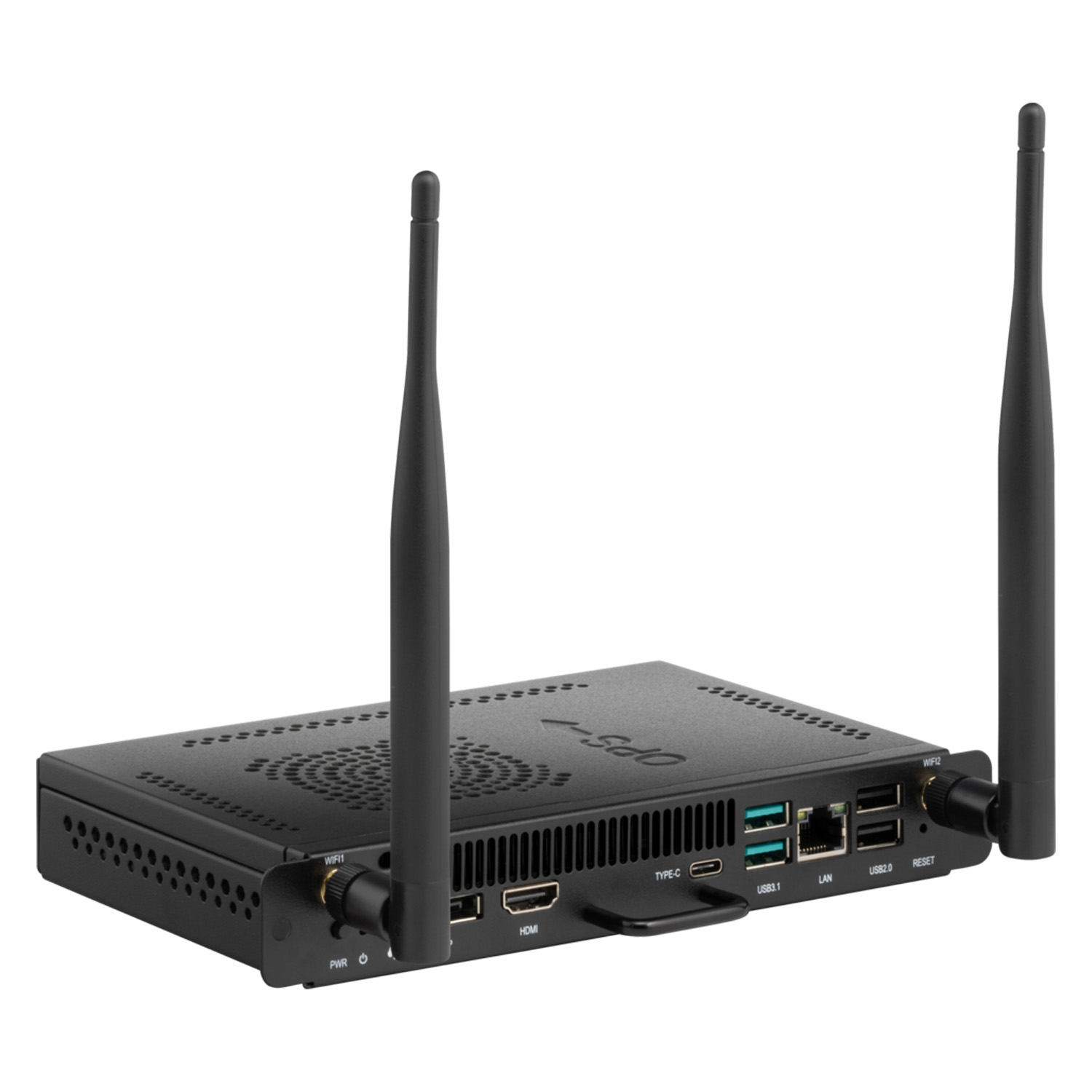

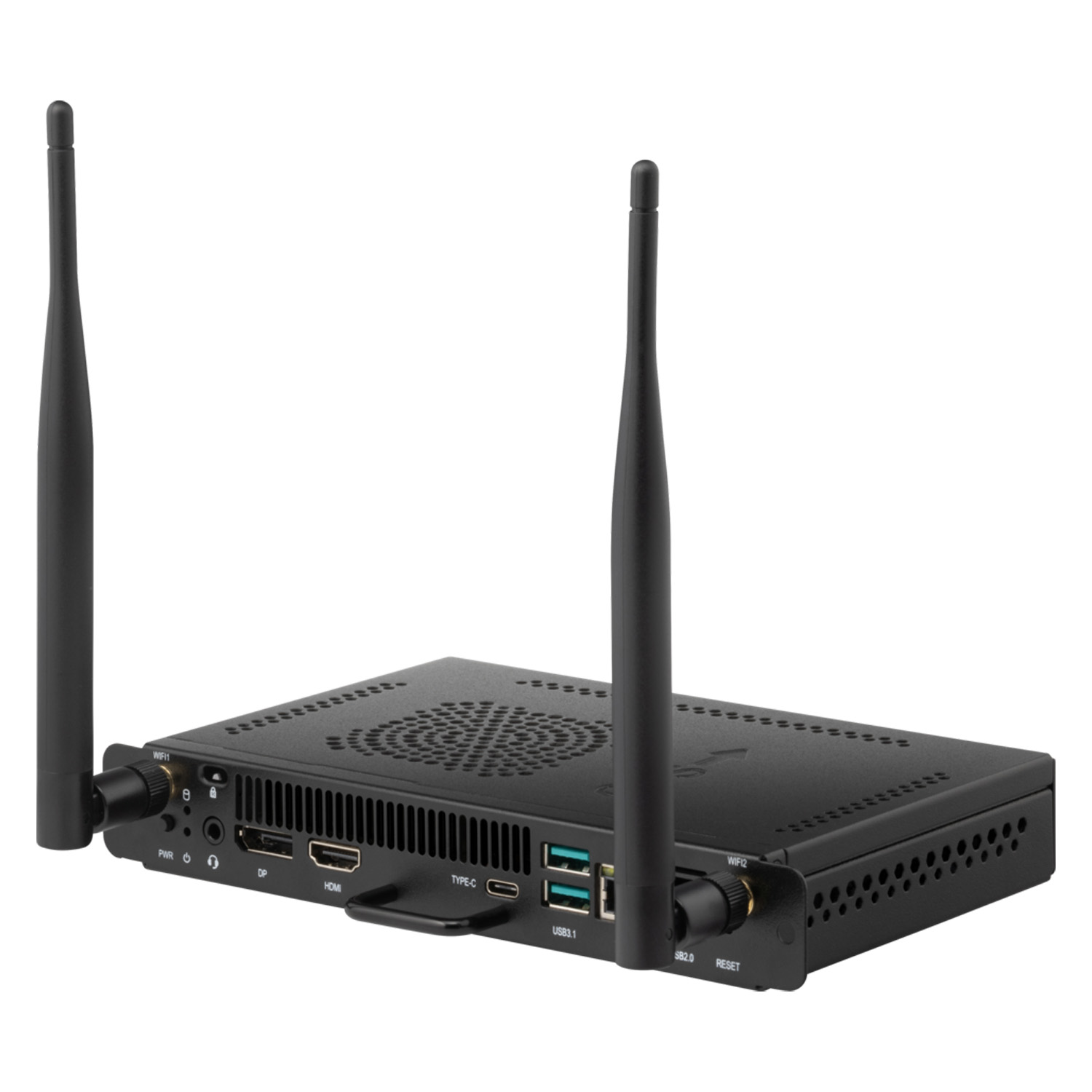

Seize the power to get more done by syncing your ViewBoard Interactive Displays and Presentation Displays with the ViewSonic VPCF5-W55-G1-2A slot-in PC. Experience exceptional performance with Intel 12th generation processors, 16GB DDR4 memory, and 512GB SSD storage, allowing you to breeze through any task at hand. Enhance productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, 5K DP, USB 3.1, and Gigabit LAN RJ45 for faster workflows.
Tap Into a Productivity Powerhouse
Boost your interactive whiteboard with remarkable power and lightning-fast speed from the Intel 12th Gen Core processor, allowing you to zip through tasks effortlessly. With Intel WiFi 6 and Bluetooth 5.2 integration, experience ultra-fast and versatile connectivity.

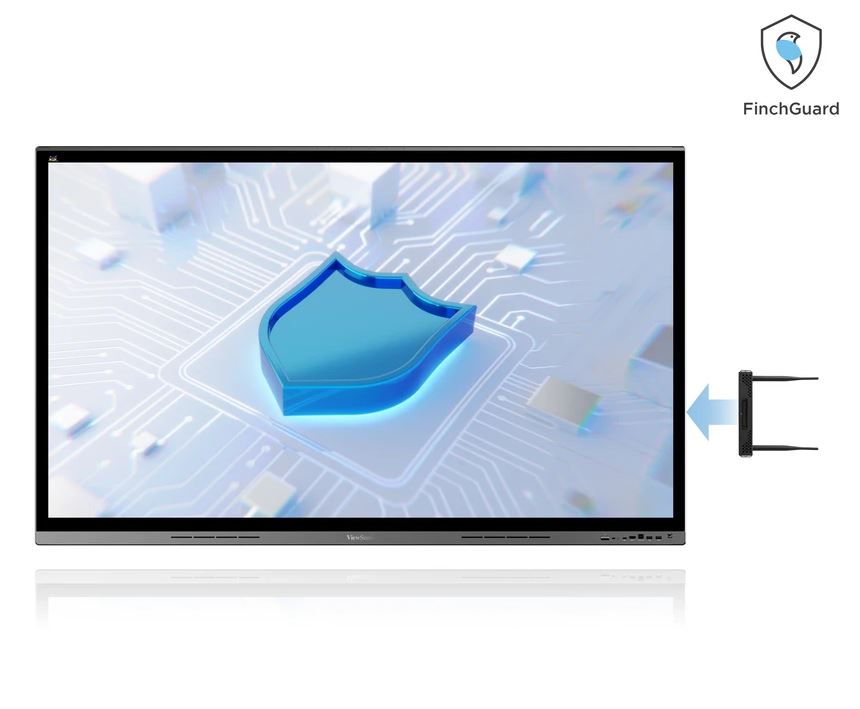

Uninterrupted Performance
Use the interactive display without worrying about sudden disruptions. Built with FinchGuard, a Watchdog timer software, the VPCF5-W55-G1-2A intuitively detects and recovers from system malfunctions seamlessly, maximizing productivity.

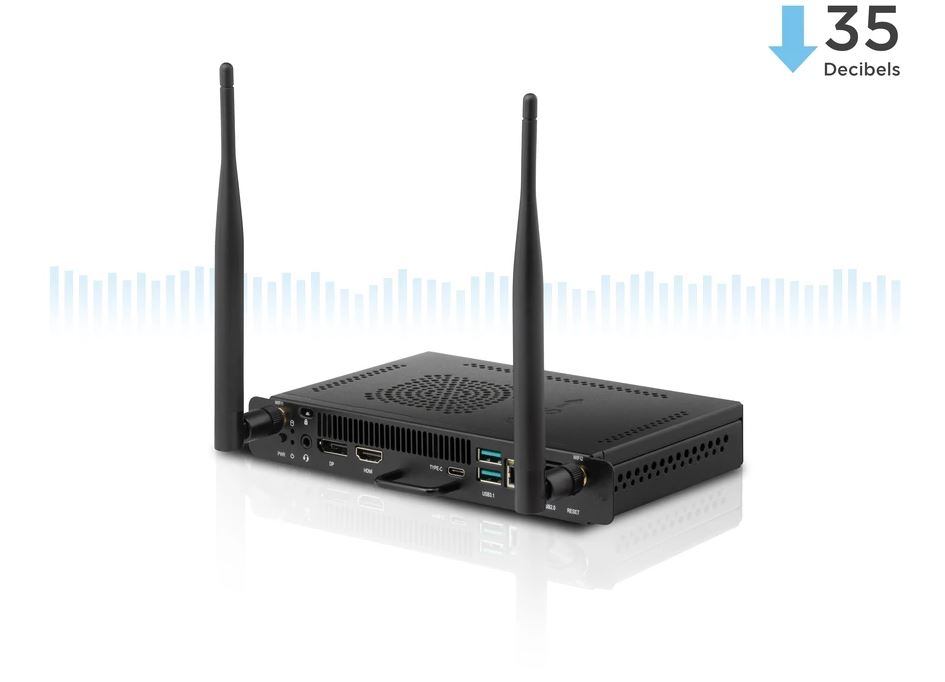

Quiet Efficiency with Advanced Thermal Control
Equipped with a thermal control circuit and noise reduction capabilities, the device’s fan dissipates heat efficiently while maintaining quiet acoustics under 35 decibels, ensuring a more conducive and longer use.

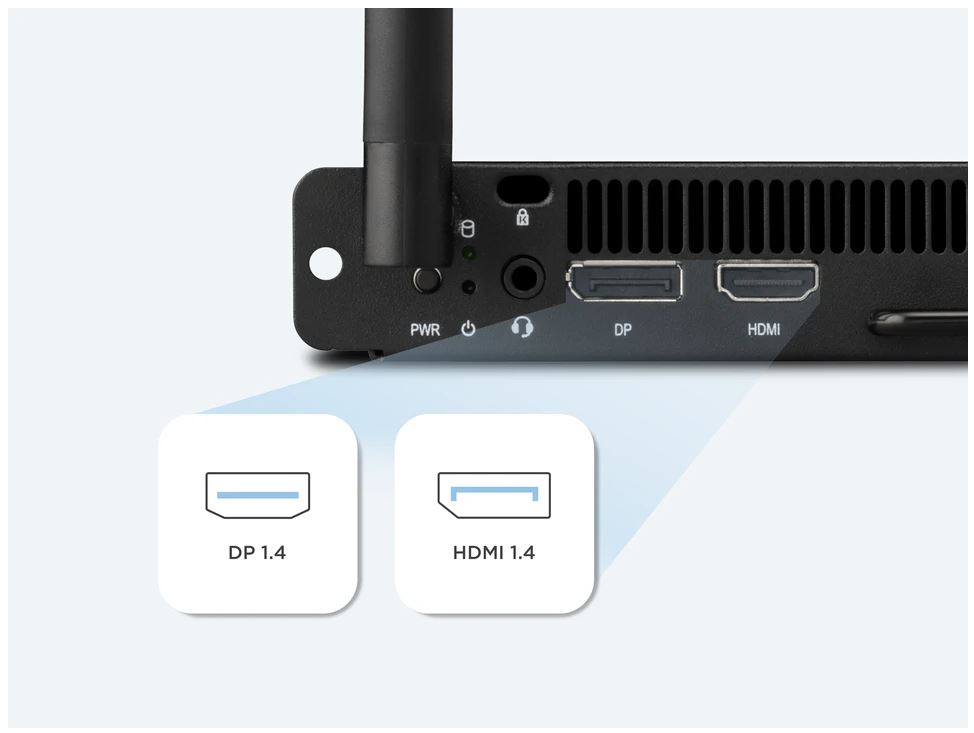

Unparalleled Visual Clarity
Experience exceptional visual performance with HDMI 1.4 and DP 1.4 output ports, respectively supporting up to 4K resolution at 24Hz and 5K resolution at 60Hz, offering flexibility for various resolutions.
Boot Up with Total Security
Prevent malicious software and unwanted operating systems from loading during startup with the optional Secure Boot in the BIOS settings. This feature stops existing errors from loading and to prevent unauthorized personnel from accessing PC settings.

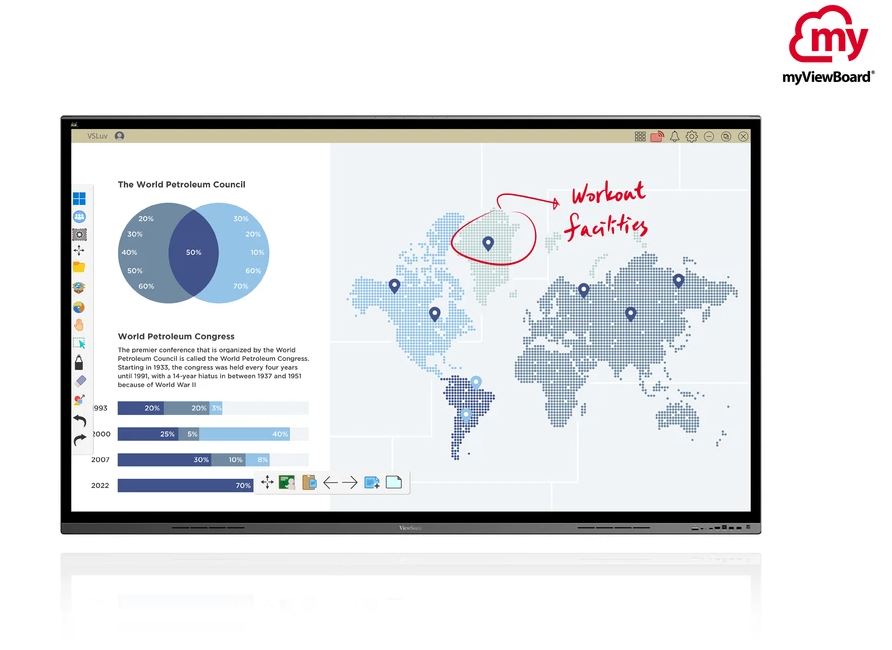

Built-in myViewBoard Software
The VPCF5-W55-G1-2A seamlessly integrates with myViewBoard software, providing users with a robust whiteboarding solution featuring a wide range of capabilities, including file import, drag-and-drop content from the internet, and cloud integration.
SPECIFICATION |
|
Software |
Operating System : Windows 11 Pro |
Core |
CPU : Intel Gen12th core i5 CPU or later Gen. CPU
Graphics : Intel® Iris® Xe Graphics* (DP Supports up to 8K@30Hz, HDMI Supports up to 3840×2160@30Hz) |
Memory |
Type : DDR4 Capacity : 16GB |
Storage |
Dimension : M.2 SSD Capacity : 512GB Interface : PCIE |
INPUT |

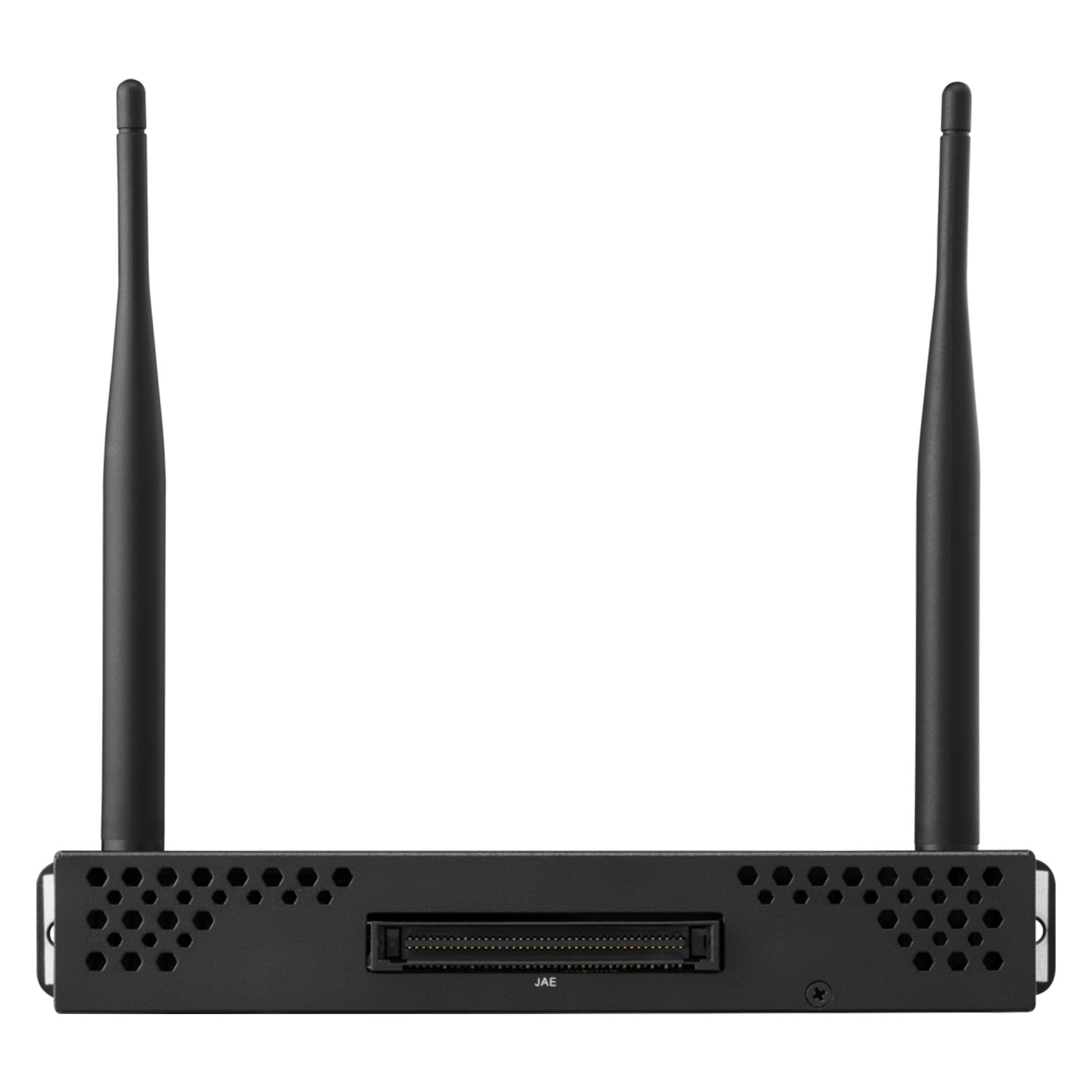

MIC(Microphone) : MIC-In&Line-Out two in one connector OPS Standard : 80 PIN x1 (HDMI 2.0 4K@60Hz, DP 5K@60Hz, USB3.0 x1 + USB2.0 x2, DC 12-19V) |
OUTPUT |
HDMI : x1 (Max 3840×2160@30Hz) Audio : MIC-In&Line-Out two in one connector |
RJ45 |
X1 (RJ45 10/100/1000M) |
Wireless / Bluetooth |
Intel® Wi-Fi 6 AX101 WIFI 6 802.11 ax + BT5.2 |

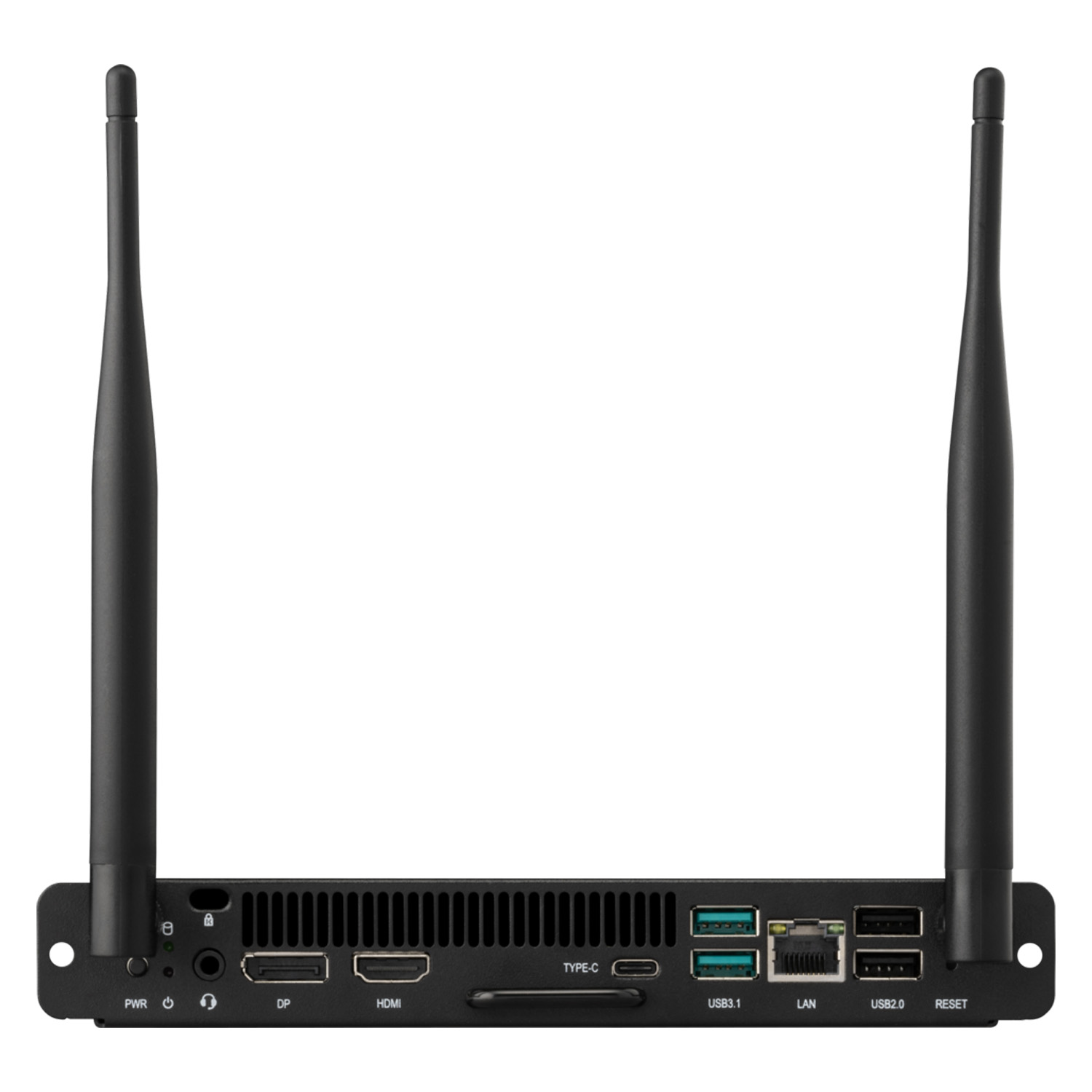

USB |
Type A : USB 3.1 x 2 / USB 2.0 x 2 Type C : USB 3.1 Gen2 x 1 (Data Only) |
Power |
Voltage : DC 19 V/ 4.74A Consumption : Max 90 W |
DIMENSIONS (W x H x D) |
Physical (inch / mm) : 7.87 x 4.68 x 1.18 in / 200 x 119 x 30 mm Packaging (inch / mm) : 10 x 7.72 x 2.76 in / 254 x 196 x 70 mm Net (lb / kg): 1.54 lb / 0.7 kg Gross (lb / kg): 1.54 lb / 3.4 kg |
| PACKAGE CONTENTS | 1. Quick Start Guide(With Compliance Statement ) 2. Screws x 2 3. Antenna x 2 |
