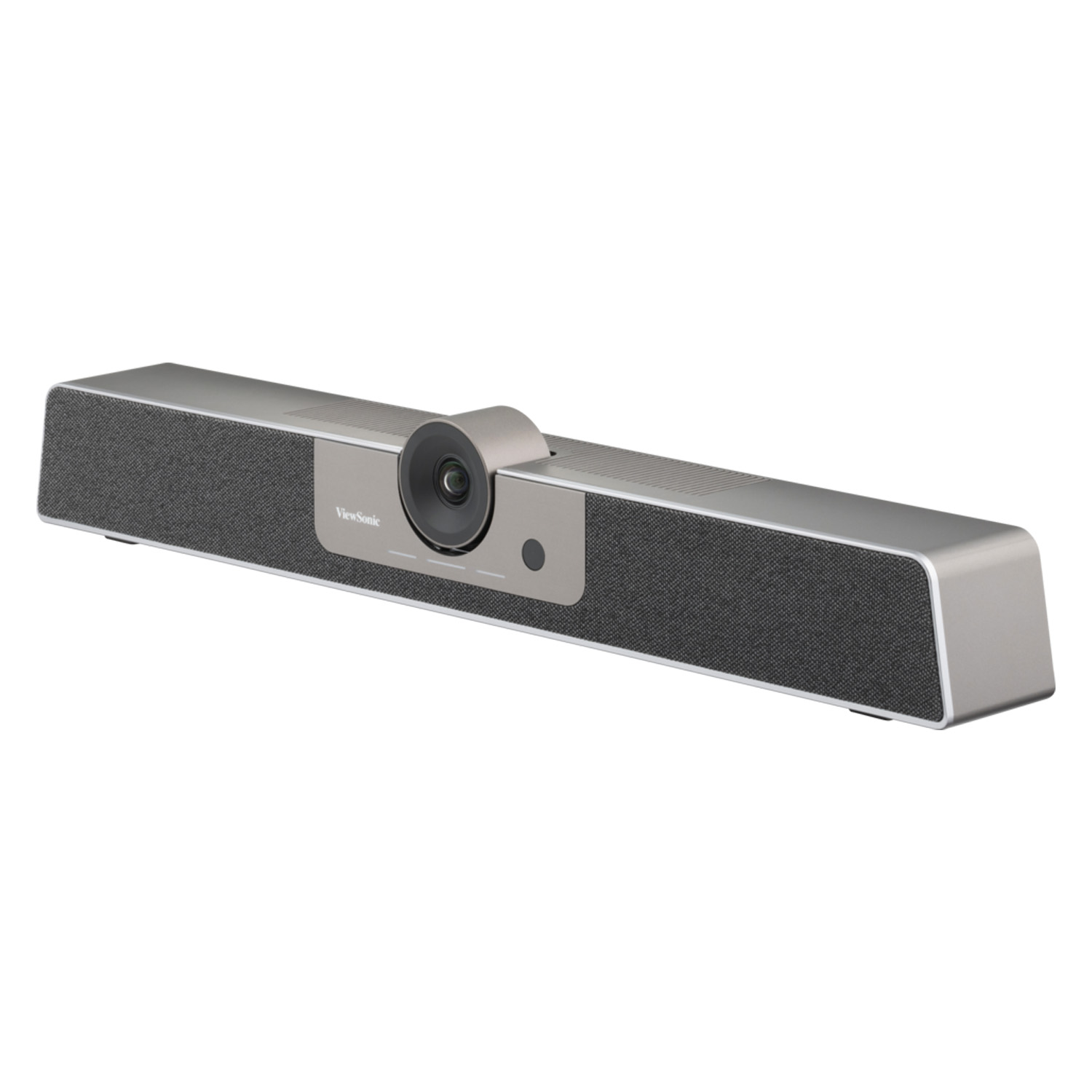

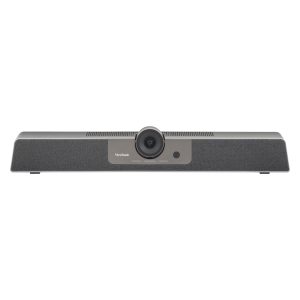

Viewsonic UMB202 – 4K UHD Video Bar System

Rp18.500.000

– Sony 4K Ultra HD camera sensor for advanced image processing
– 6-mic array beamforming soundbar with an 11W speaker
– USB Type C
– Speaker : Maximum output 8W + 3W
– Mic Mute Button : Yes

Pesan Disini
Add to wishlist
SKU: UMB202 Category: Tags: , ,

Description

UMB202

  • Sony 4K Ultra HD camera sensor for advanced image processing
  • Intelligent auto framing and DOA voice tracking technology
  • 6-mic array beamforming soundbar with an 11W speaker

GAMBARAN

The UMB202 TeamJoinâ„¢ 4K Video Bar System is part of the ViewSonic TeamJoinâ„¢ solutions for Microsoft Teams Rooms, optimizing collaboration in meeting rooms of diverse sizes. Boasting a 4K Sony camera sensor, 5x digital zoom, auto-framing, and DOA voice tracking, it delivers a premium visual experience. Complemented by six beamforming microphones, which cover an expansive 8-meter range, and an 11W speaker, the camera ensures crystal-clear audiovisual quality for seamless communication.



Elevate Your Presence in Every Interaction

The UMB202 TeamJoin 4K Video Bar System’s intelligent auto-framing and Direction-of-Arrival (DOA) voice tracking technology accurately detect individuals and their voices, while the 5x digital zoom with electronic pan and tilt ensures your presence is felt in every interaction, fostering inclusivity and collaboration in every meeting.

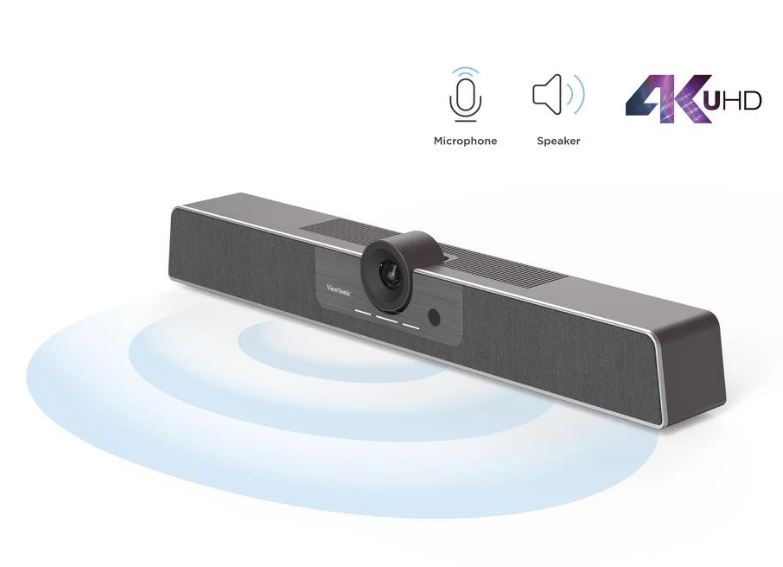

See and Hear Everyone Clearly

Ensure everyone is seen and heard with the UMB202 TeamJoin 4K Video Bar System, equipped with a built-in 6-microphone array, an 8W+3W front-facing speaker, and an Ultra HD 4K camera featuring an advanced Sony sensor..

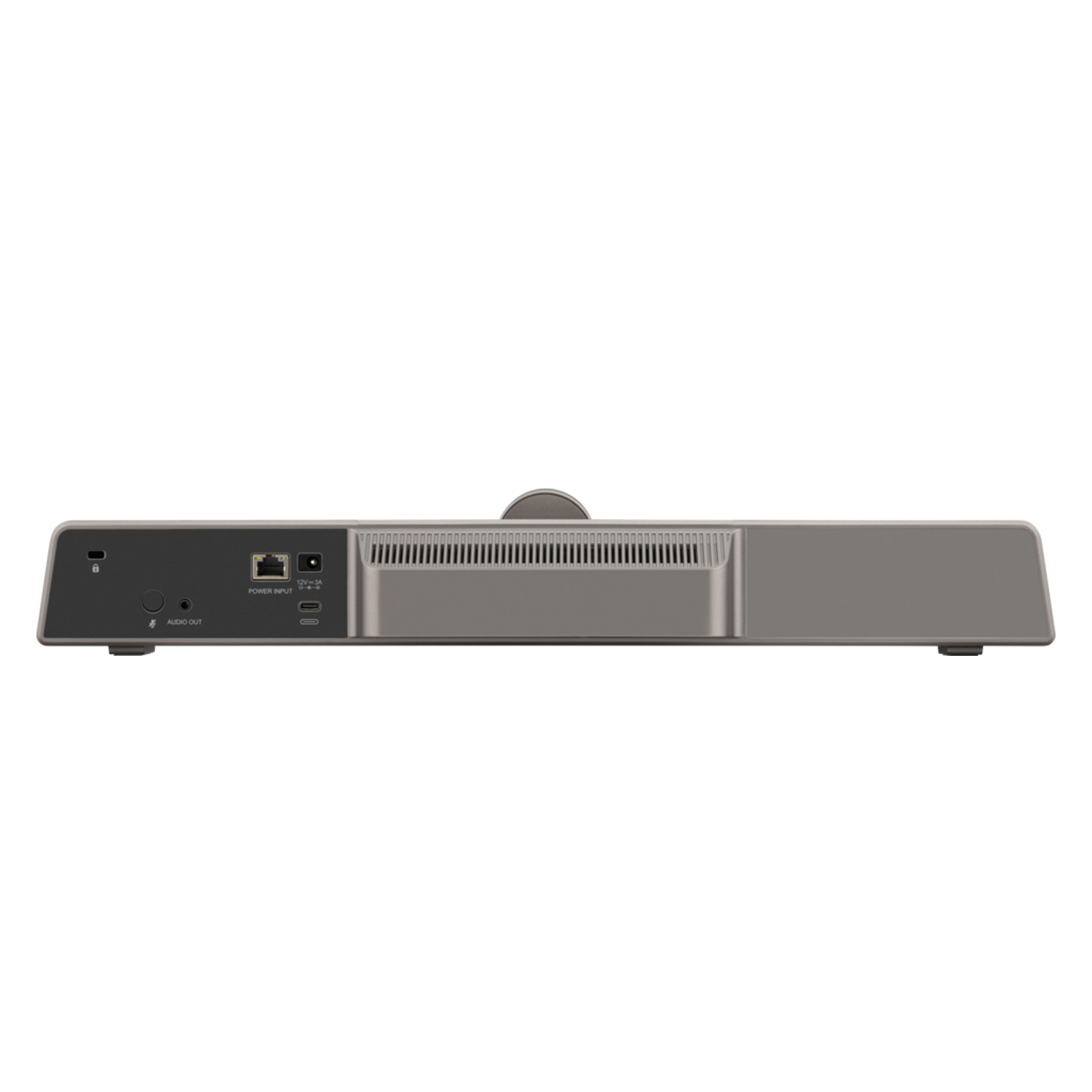

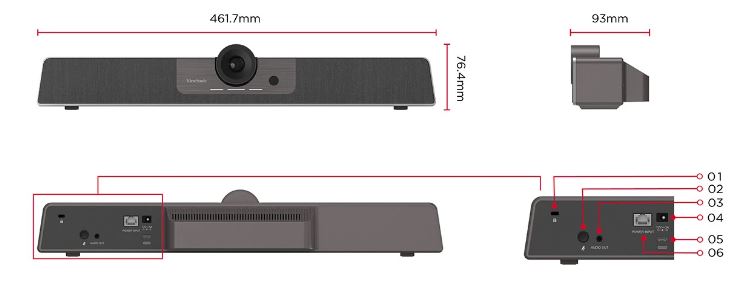

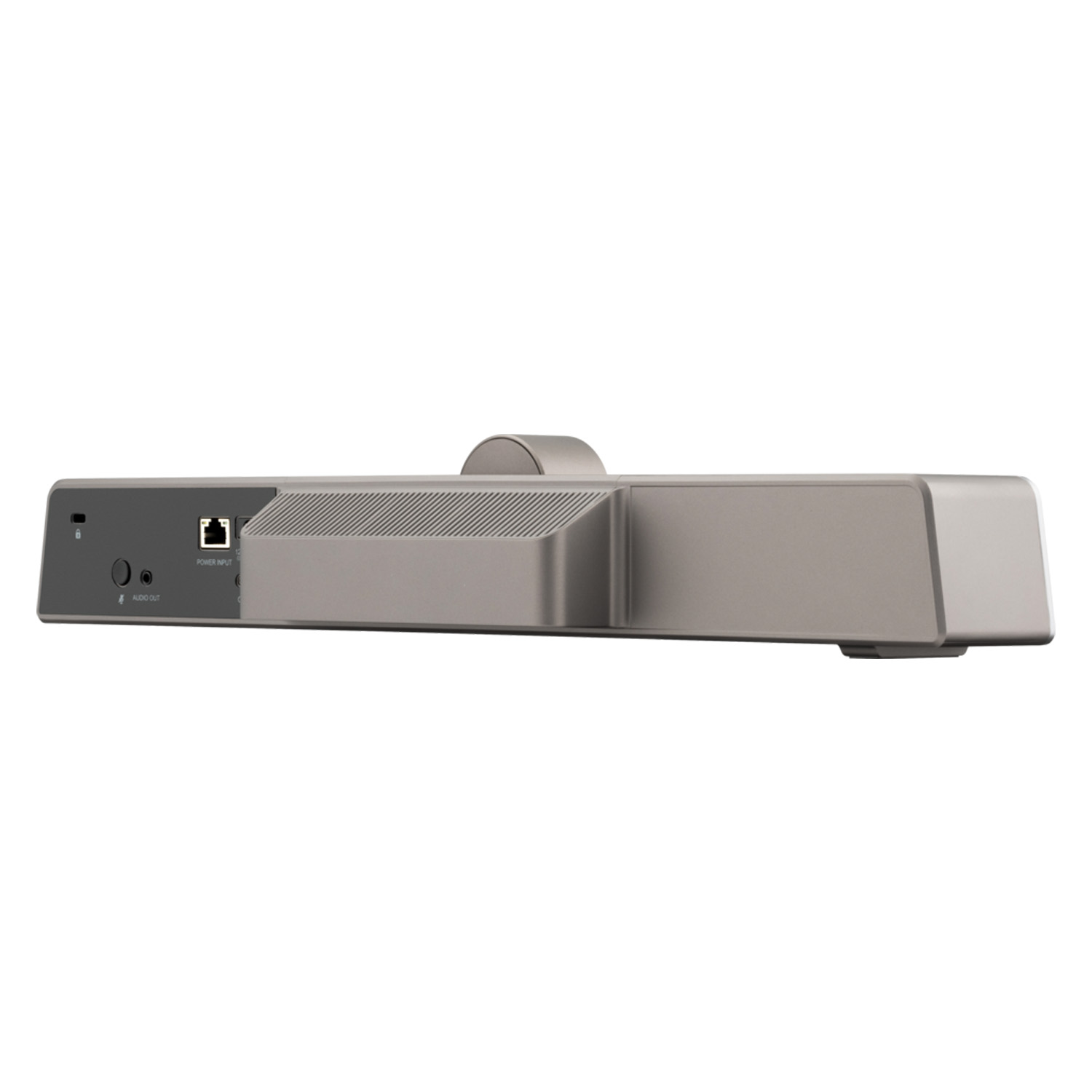

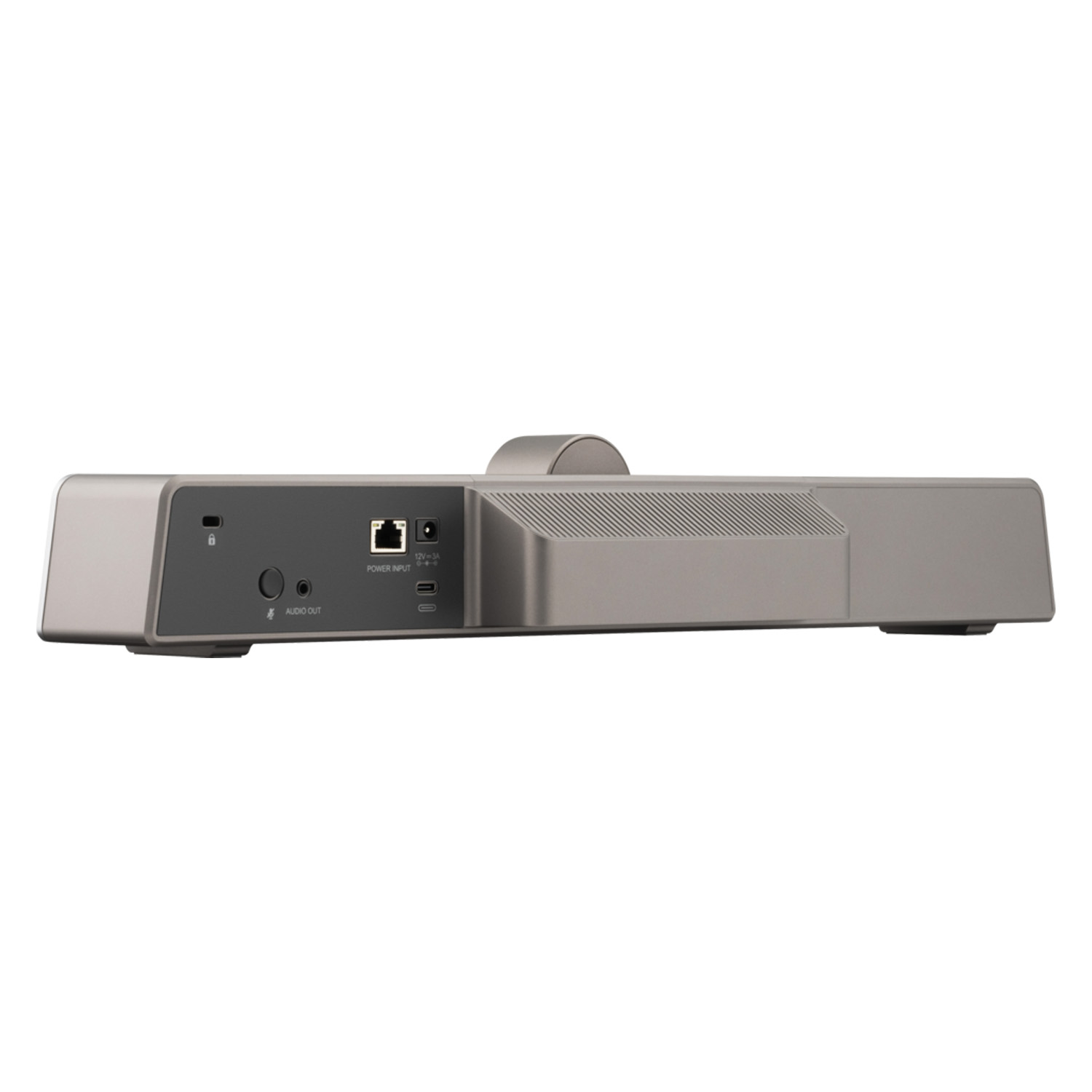

Dimension & I/O Ports

1. K-Slot
2. Mic Mute
3. Audio Out
4. DC in
5. C-type USB Port
6. Power input via RJ45





SPECIFICATION





Camera

 Resolusi: H.264/MJ: @30FPS
(1)3840×2160 (2)2560×1440
(3)1920×1080 (4)1280×720
(5)1024×576 (6)960×540
(7)800×600 (8)640×480
(9)640×360 (10)480×270
(11)352×288 (12)320×240
NV12 / YUY2: @30FPS
（1）1920×1080（2）1280×720
（3）640×360
Sensor: IMX577 1/2.3 inch, CMOS, 12M pixel
FOV: 117.8° (DFOV) ，109° (HFOV)，74.4° (VFOV)
PTZ: EPTZ (5X digital Zoom)
Digital Noise Reduction: Yes
White Balance: Yes
Exposure: Yes

Audio

 Microphone array: 6 element, 8 meters pickup range
Speaker: mid-bass modulex1, treble module x1 in one box
(Maximum output 8W + 3W)
Output Power: 80 dBA @ 1000 Hz @ 1 meter at maximum volume

I/O

 USB-TypeC: 1
Audio Out: 1
DC 2.0 Power: 1
RJ45: 1 (Only for power supply)
IEEE 802.3 at，25.50W (max)
Power Button: Power Button: In startup mode, press the power button to mute.
In standby mode, press the power button to power on.
MIC Mute Button: Yes

Brand

VIEWSONIC

Download

Brochure UMB202

Datasheet

Sensor:  : IMX577 1/2.3 inch, CMOS, 12M pixel
Microphone array : 6 element, 8 meters pickup range
Speaker : Mid-bass modulex1, treble module x1 in one box
MIC Mute Button : Yes
Warranty : 3 Tahun
