Description
ViewBoard IFP75G1
- Bring Your Own Device interactive display for versatile use in any scenario
- Upgradable framework for enhanced versatility and prolonged longevity
- Seamless USB-C plug-and-play connectivity with 65W power charging for convenient presentations
- Flexible integration with slot-in PCs, supporting Windows, Linux, and EDLA
OVERVIEW
Transform teamwork and efficiency with the ViewBoard IFPG1 Series of Bring Your Own Device interactive displays. Boasting an upgradable framework, this series ensures versatility by seamlessly integrating with slot-in PCs across EDLA, Windows, and Linux operating systems. Through these integrations, it enables access to Google Workspace and Microsoft 365 productivity suites to elevate workspace dynamics. This versatility extends to its USB-C plug-and-play connectivity, enabling instant and fluid presentations from connected devices, regardless of their platform. Prioritizing productivity and peace of mind, the series emphasizes data security, ensuring sensitive information remains securely stored on connected devices for workflows that are truly safe and efficient.
Built to Last
The IFP G1 Series’ upgradable framework ensures easy integration with your existing hardware, guaranteeing versatility and prolonging longevity of use. Boasting EPEAT Silver and ENERGY STAR 8.0 certifications, it offers a versatile, energy-efficient, and forward-thinking solution for the needs of dynamic workspaces.
USB-C Plug and Play Connectivity
Experience seamless connectivity with the USB-C one-cable solution. Simply plug in your laptop, desktop PC, or mobile device to instantly bring presentations to the big screen for clearer viewing and annotation. With up to 65W power delivery, it conveniently charges connected devices, creating a clutter-free workspace.
Seamlessly Integrates with Slot-In PCs
Enhance your productivity and collaboration potential by seamlessly integrating the ViewBoard IFPG1 Series with a slot-in PC featuring your OS of choice. An EDLA-certified OPS will bring more advanced whiteboarding capabilities and integrated access to the Google Play Store and Workspace Suite. Opt for a Windows slot-in PC to work in a familiar desktop environment, or select a FreeDOS or UEFI Shell device for extended customization possibilities.

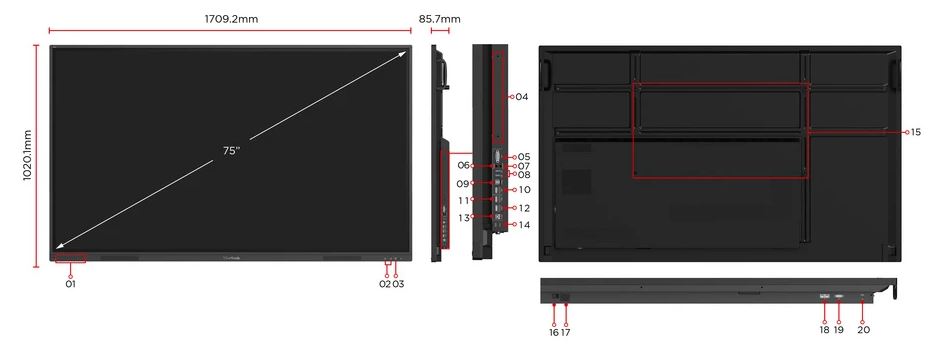

Dimensions & I/O Ports.
| 1 | Menu Controls |
| 2 | USB 3.0 X 2 |
| 3 | USB 2.0 |
| 4 | OPS Slot |
| 5 | VGA |
| 6 | Audio In |
| 7 | Audio Out |
| 8 | USB 3.0 X 2 |
| 9 | Touch 1 |
| 10 | HDMI 1 |
| 11 | HDMI 2 |
| 12 | HDMI 3 |
| 13 | Touch 2 |
| 14 | USB Type-C |
| 15 | VESA® Wall Mount 400 x 200mm |
| 16 | Power On/OFF |
| 17 | AC IN |
| 18 | LAN |
| 19 | RS232 |
| 20 | USB 2.0(FW update) |
SPECIFICATIONS |
|
Display |
Panel Size: 75″ Panel Type: TFT LCD Module with DLED Backlight. Display Area (mm): 1649.664(H) × 927.936 (V) Aspect Ratio: 16:9 Resolution: UHD 3840×2160 Colors: 1.07G Brightness: 400 nits (typ.) Contrast Ratio: 1200:1 (typ.) 6000:1 (DCR) Response Time: 8ms Viewing Angles: H = 178, V = 178 typ. Backlight Life: 50,000 hours (Typ) Surface Treatment: Hardness: 9H, Anti-glare coating Bezel: Slim Orientation: Landscape |
INPUT |
HDMI: Rear 2.0 x 3 (HDMI 1 & 3 Support CEC; HDMI 2 Supports CEC & ARC) RGB / VGA: x1 Audio: x1 RS232: x1 OPS: x1 |
OUTPUT |
Audio: x1 RJ45: 1 in 1 out |
USB |
Type A: Front x3(USB2.0x1, USB3.0x2) Rear x3(USB3.0x2, 2.0 x1 for FW update) Type B: Rear x2 (USB 3.0×2) Type C: x1 ( DP 1.2, Touch, Data Sharing, PD65W, Ethernet 10M/100M) |
SPEAKER : |
10W x 2 |
TOP CAMERA PLATE : |
Yes |
SPECIAL FEATURES |
All-in-one USB port: “SmartPort™ USB” to all channels. Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10M/100M, OPS 1000M) Light Sensor: Yes |
POWER |
Voltage: 100-240VAC +/- 10% Wide Range Consumption: On:110.82W Off mode <0.5W. |
Wall Mount (VESA): |
600mm x 400 mm |
DIMENSIONS (W x H x D) |
Physical (inch / mm): 67.2 x 40.2 x 3.4 in / 1708 x 1020 x 85.7 mm Packaging (inch / mm): 73.3 x 44.9 x 8.9 in / 1863 x 1140 x 225 mm Net (lb / kg): 109.35lb/49.60kg Gross (lb / kg): 137.35lb/62.30kg |
PACKAGE CONTENTS |
1. 3m power cable 2. HDMI 2.0 cable 3m x 1 (HDMI LA certified) 3. Remote control with AAA battery (Opt.) 4. 3m USB 2.0 touch cable x 1 5. Touch pen (Passive pen) x 2 (VB-PEN-002) 6. Quick Start Guide + Compliance Statement 7. RS232 adapter 8. Screw (wall mount 4) 9. Camera Plate |
Compatible Slot-in PC |
Configurable OS, Windows, Google EDLA ; VPC-A31-O1/VPC33 series/VPC35 series/VPC37 series |
