Description

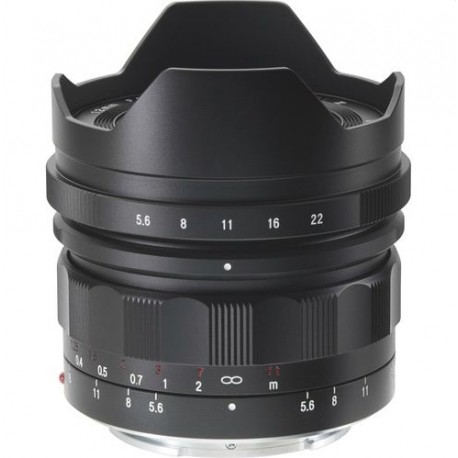

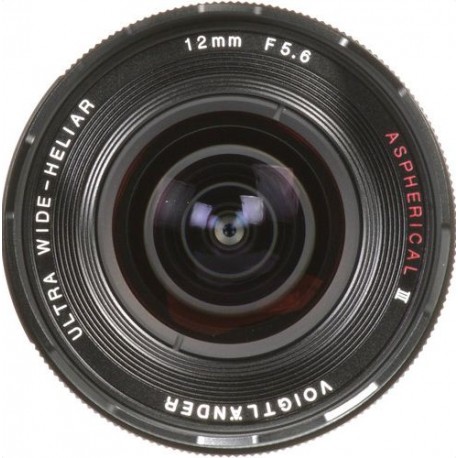

A truly wide-angle prime, the Ultra Wide-Heliar 12mm f/5.6 Aspherical III from Voigtlander is dedicated to full-frame Sony E-mount cameras, and features an updated Heliar design to render a rectilinear image, limit distortion, and maintain consistent sharpness and illumination to suit mirrorless camera designs. One aspherical element is employed in the 12 elements, 10 groups optical design to control spherical aberrations and distortions throughout the aperture range. The lens also uses a manual focus design to permit fine-tuned control over focus placement, with a minimum focusing distance of 11.8″, and a Selective Aperture Control System allows you to de-click the manual aperture ring for smooth, silent exposure adjustment to suit filmmaking applications.
Ultra wide 12mm focal length lens is designed for full-frame Sony E-mount mirrorless cameras and provides a 121° angle of view. It is also compatible with APS-C models where it will produce an 18mm equivalent focal length.
Rectilinear (non-fisheye) design maintains straight lines toward the periphery of the frame for a more realistic portrayal of architectural and other geometrically complex subjects.
Updated Heliar optical design helps to maintain consistent peripheral illumination, eliminate color fringing, and reduce distortion; making it ideal for use with mirrorless digital cameras.
One aspherical element is featured in the optical design to control spherical aberrations and improve clarity, sharpness, and resolution.
Manual focus design permits smooth, refined control along with a minimum focusing distance of 11.8″.
Selective Aperture Control System produces a stepless, de-clicked aperture ring, which provides silent and smooth exposure adjustment that is well-suited for video application. The aperture ring can also be configured to utilize traditional 1/3-stop clicks for more intuitive tactile control over exposure settings.
Ten-blade diaphragm contributes to a smooth quality of bokeh.
Built-in lens hood guards the front lens element and also helps to control lens flare and ghosting.
Contacts transfer all Exif data between the camera and lens in order to permit full use of camera functions, including focus magnification, image stabilization, and lens corrections.
SPEC :
Physical
Dimensions (WxHxD) 2.65 x 2.93″ / 67.4 x 74.3 mm
Weight9.98 oz / 283 g
Lens
Focal Length 12mm
Aperture Maximum: f/5.6 Minimum: f/22
Angle of View 121°
Camera Mount Type Sony E
Format Compatibility 35mm Film / Full-Frame Digital Sensor
Minimum Focus Distance 11.81″ / 30 cm
Elements/Groups 12 Elements in 10 Groups
Diaphragm Blades 10
Autofocus No
Filter Thread None
