Description
IFP6550-3

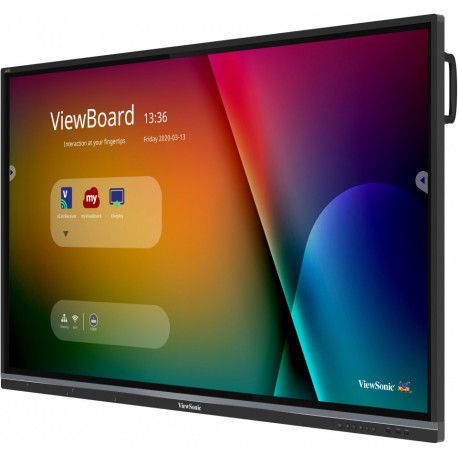

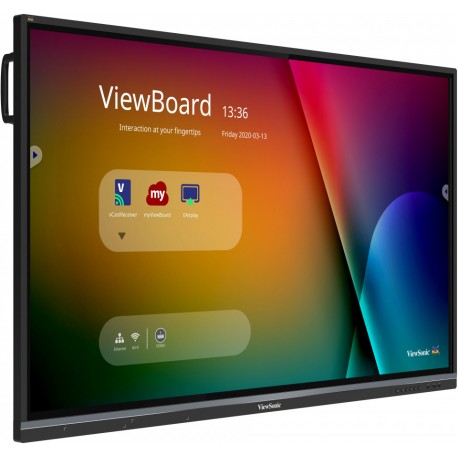

ViewBoard 65″ 4K Interactive Display
- Intuitive Interactive Interface and Eye-care Certified Display
- Synchronous Writing Performance with Dual Pens
- Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
- Native Whiteboarding Tool with built-in myViewBoard® App
- Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App
GAMBARAN
For teachers in the modern classroom, the ViewBoard® IFP50 series has the most intuitive interactive interface. It keeps continuous interaction within the first vision area and keeps everything within comfortable reach. Additionally, it is an eye-care certified display with low blue light and flicker-free at all brightness levels. The ViewBoard® IFP50 series further stands out with synchronous writing performance. You can write smoothly, with the pen that serves as an extension of your fingertips, and simultaneously with the equipped dual pens of different colors and thicknesses. The native built-in whiteboarding tool, myViewBoard®, further helps visualize your ideas with ease. The ViewBoard® IFP50 series is further complimented by wireless content sharing. Students can share their screens to the ViewBoard and vice versa with the built-in ViewBoard® Cast app. It is not limited to one-on-one presentation either. Teachers can advance to do group activities with the 4-way split screen display. Whether you’ve experienced good or lackluster classroom interaction in the digital whiteboarding world, the ViewBoard® IFP50 series will now allow you to work effortlessly in the classroom.
UFT Technology
Ultra Fine Touch Technology produces a lag-free, pen-on-paper writing experience. Writing accuracy is greatly improved and student-teacher interaction flows more naturally thanks to real-time response rates, dual-pen recognition and our new 3mm tipped pens.
Dual-Pen
Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.
*Image shown is for illustration purposes only. Actual product may vary.
Full Native Performance on ViewBoard OS
Built-in myViewBoard® digital whiteboard software to collaborate on the go.
4-way Split Screen
4-way split-screen content sharing with built-in ViewBoard® Cast software.
Shared USB Ports
SmartPort™ shared front USB ports for internal & external PCs.
Stereo Sound
2.1 Stereo sound with a built-in subwoofer.
Faster Internet
LAN sharing with slot-in PC provides a faster, more powerful internet connection.
Object Recognition and Windows Ink Compatible
Make annotations, write and draw on the whiteboard, Office365 or Windows Ink. Therefore your meetings will be more collaborative and interactive.
Remote Control
Built-in RS232 port and vController software for remote control.
Slot-in PC
Slot-in PC with Intel 8th-gen CPU (Optional).
Web Camera
Top-mounted 1080p web camera (Optional).
I/O Port
1 | MENU CONTROLS |
2 | USB 3.0 |
3 | USB 2.0 |
4 | USB 3.0 |
5 | TOUCH |
6 | HDMI IN X 3 |
7 | Wi-Fi Module Slot |
8 | VESA® Wall Mount 600x400mm |
9 | INTERNAL SPEAKERS |
10 | USB 2.0 |
11 | LAN |
12 | Audio Out |
13 | RS232 |
14 | SPDIF |
15 | Audio In |
16 | VGA |
SPESIFIKASI
Tampilan | Ukuran Panel: 65″ |
Jenis Panel: TFT LCD Module with DLED Backlight. | |
Area Tampilan (mm): 1431 (H) x 807 (V) (64.5” diagonal) | |
Aspect Ratio: 16:9 | |
Resolusi: UHD 3840×2160 (Pixels) | |
Colors: 1.07B colors (10bit) | |
Kecerahan: 350 nits (typ.) | |
Rasio Kontras: 5000:1 (DCR) | |
Waktu Respon: 8ms | |
Sudut Pandang: H = 178, V = 178 typ. | |
Backlight Life: 30,000 Hours (Min) | |
Surface Treatment: Hardness: 9H | |
Anti-glare coating | |
Bezel: Slim | |
Orientasi: Landscape | |
Platform | Prosesor: ARM Cortex-A73*2 + Cortex-A53*2 1.5GHz |
RAM: 3GB DDR4 | |
Penyimpanan: 32GB | |
Touch | Jenis / Teknologi: IR Recognition |
Resolusi Sentuh: 32767 x 32767 | |
Titik sentuh: 20 points touch, 10 points writing | |
INPUT | HDMI: 2.0 x3 (3840×2160 @60Hz) |
RGB / VGA: x1 | |
Audio: x1 (PC audio in) | |
RS232: x1 | |
OPS: x1 PC Slot (proprietary) | |
OUTPUT | Audio: x1 (Earphone out) |
SPDIF: 1 (optical) | |
LAN | RJ45: x1 |
USB | Tipe A: USB2.0: Front x2, Rear x1 (SmartPort™ for all) |
USB3.0: Front x1, Rear x3 (SmartPort™ for Rear x3) | |
Tipe B: x2, for touch | |
SPEAKERS | 10W x 2 + 15W x 1 subwoofers |
MICROPHONE | built-in 8-array microphone |
Top Camera Plate | YES |
COMPATIBILITY | HDMI: 3840×2160 |
Embedded OS | Android 8 |
Bundle Software | Perangkat Lunak Anotasi Dasar: myViewBoard |
Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC) | |
Fitur spesial | All-in-one USB port: Front “SmartPort™ USB” to all channels. |
Berbagi LAN sederhana antara IFP dan perangkat slot-in: 10M/100M/ for Android | |
10M/100M/1000M for slot-in PC | |
Power | Tegangan: 100-240VAC +/- 10% Wide Range |
Konsumsi: On: 108W(typ.) / Off: <0.5W | |
ERGONOMICS | Wall Mount (VESA® ): 600 x 400 |
OPERATING CONDITIONS | Suhu (º C): 0°C to 40°C |
Kelembaban: 10% ~ 90% RH non-condensing | |
DIMENSI (W x H x D) | Fisik (inci / mm): 58.6 x 35.3 x 3.5 in / 1488 x 897 x 90 mm |
Kemasan (inci / mm): 65.7 x 39.8 x 8.8 in / 1669 x 1010 x 223 mm | |
WEIGHT | Net (lb / kg): 89.3 lb / 40.5 kg |
Gross (lb / kg): 109.6 lb / 49.7 kg | |
REGULATIONS | cTUVus, FCC, ES8, EPEAT, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP, EAC, UKrSEPRO, RCM, BSMI |
ISI PAKET | 1. Power cable (3 meters). VSAx1, VSEx2, VSIx4 2. Remote control 3. USB cable (3 meters) 4. Touching pen x 2 5. Quick Start Guide 6. RS232 adapter 7. Clamp x 5 8. Plate 9. Screw x 8 10. HDMI cable 3M |
PC Slot-in yang kompatibel | VPC14-WP series |
VPC10-WP series | |
VPC15-WP series | |
VPC16-WP series | |
VPC17-WP series |
